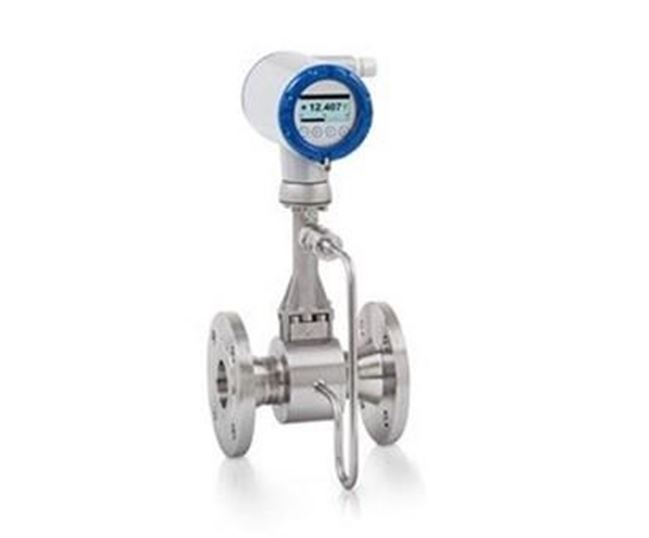

VersaFlow Vortex 200, with integrated pressure and temperature compensation.

This all-in-one solution provides a highly accurate measurement for both conductive and non-conductive liquids, including vapours and gases. This Vortex meter provides stable readings even under fluctuating pressures and temperatures.

The VersaFlow integrates gross and net heat calculation for steam and hot water, it uses a 2-wire technology and has advanced technology for signal filtering – ADFD (Advanced Vortex Frequency Detection)

There is also a remote version that can provide remote readings thanks to its field housing converter

A long life can be assured thanks to its non-wearing and fully welded stainless steel construction, allowing the meter to be protected against high corrosion, pressure, and temperature.

The VersaFlow Vortex Shedding flow meter is a two-wire design that is available in configurations for pipeline sizes from: -

-          DN15 to DN100 (1/2” to 4”) in a wafer design

-          DN15 to DN300 (1/2” to 12”) in a flanged design.

Highlights

• Temperature compensation for saturated steam included as standard

• Cable length up to 50 m / 164 ft

The VersaFlow Vortex 200 flow meter is available from DMS Metering Solutions

Enquire HERE or email meters@dmsltd.com
