The Sontex Superstatic 440 Heating & Cooling Meter
The Sontex Superstatic 440 range is still proving to be one the UK’s most popular Heating & Cooling Meters! Let’s find out why...

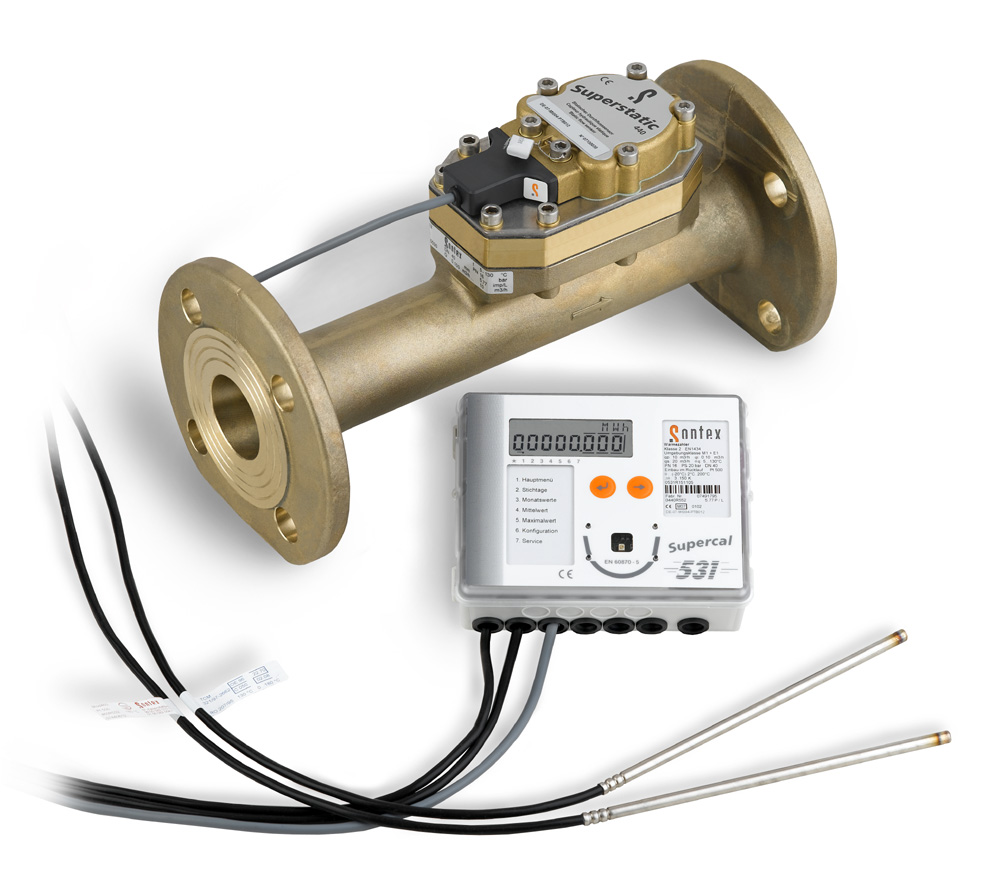

The Sontex Supercal 531 Smart Integrator and the Superstatic 440 'static' flow meter with no moving parts is your answer to systems containing glycol. The Supercal 531 can be programmed for the type of glycol and the concentration percentage to give you accurate readings where some heat meters will not operate at all.
With the range of outputs available the Supercal/Superstatic combination can be tailored for your needs for either heating or cooling applications at competitive prices.
The 440 Static Heat Meter uses the unique fluidic oscillation measuring principle, the principle of fluidic oscillation was developed by Sontex and ensures stable and precise measuring in a robust and reliable design that is resistant to impurities and poor water conditions.
The static flow sensor is free of moving parts or other objects in the pipe, e.g. mirrors that may be influenced by unexpected bad water quality or deposit.
The design of the fluidic oscillator flow sensor of the Superstatic 440 is highly modular, this means all replacement parts are the same over the whole range from qp1 – qp1500 m3/h.
Main features:
The Superstatic 440 Heating & Coolign Meter is designed and optimised to measure the consumption of thermal energy in any district heating, district cooling or building management system for the individual billing of thermal energy costs and can be easily integrated in any Smart Metering environment.
Supercal 531 Smart Integrator 240v or Battery Powered
Various Output Options Including ‘Volt Free’ Pulse Output
M-bus, Bi-Directional Radio, Analogue, LON (Gateway) & MODBus.
60+ Glycol Programmes
Temperature Range -20C to 200C
SuperStatic 440 Meter – with no moving parts
-20C to 130C Rated (Flanged Versions)
Sizes DN15 to DN250
Fully EN1431 & MID Approved
For further information, technical assistance, pricing and availaibility, please contact our sales team on 01773 534 555 or email sales@dmsltd.com
Data sheets and Installation Instructions can be found on the Sontex Superstatic web page: Sontex Superstatic 440
