Heating & Cooling / RHI

Sontex Superstatic 749 Heat Meter

Through the integration of a sleek design, compact sizing and the fluid oscillation principle, the 749 has been extensively used throughout the UK and indeed globally for a multitude of different a... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

Through the integration of a sleek design, compact sizing and the fluid oscillation principle, the 749 has been extensively used throughout the UK and indeed globally for a multitude of different applications including metering inbuilt into HIUs, Domestic Apartment installations and also Solar Thermal applications just to name a few. The 749 meters are MID Class 2 Approved and can be programmed to work with glycol and antifreeze without loss of precision. Various communication outputs are also available including pulse, LoRaWAN, M-Bus, Radio and now Wireless M-Bus as well.

The Superstatic 749 meters are all battery-powered as standard with options of 6-year and 12 Year life spans and are fully replaceable without having to install a new meter. The 749-meter range is available as a QP0.6 15mm, QP1.5 15mm, QP1.5 20mm and QP2.5 20mm. The QP Rating mentioned is the nominal flow rate in m3/hr that each meter size can measure up to.

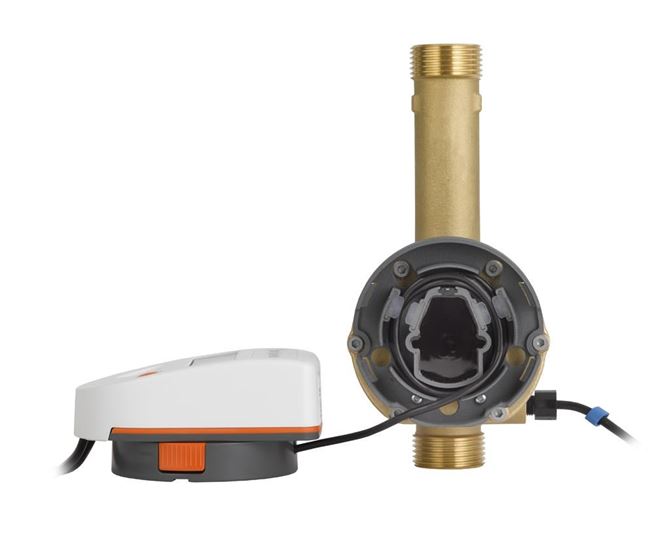

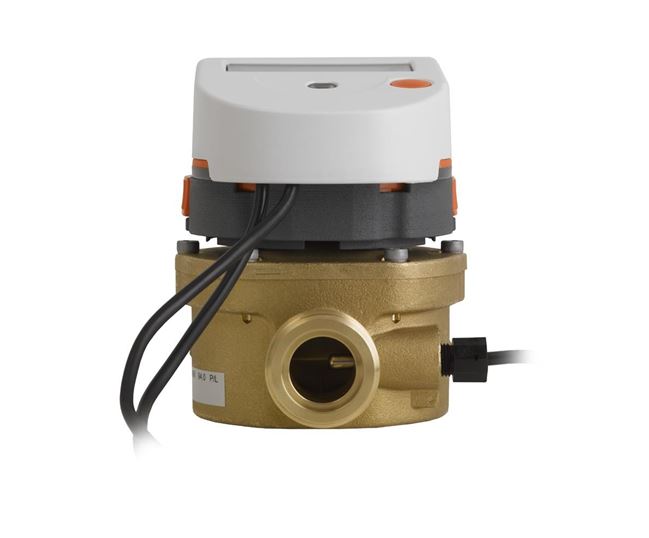

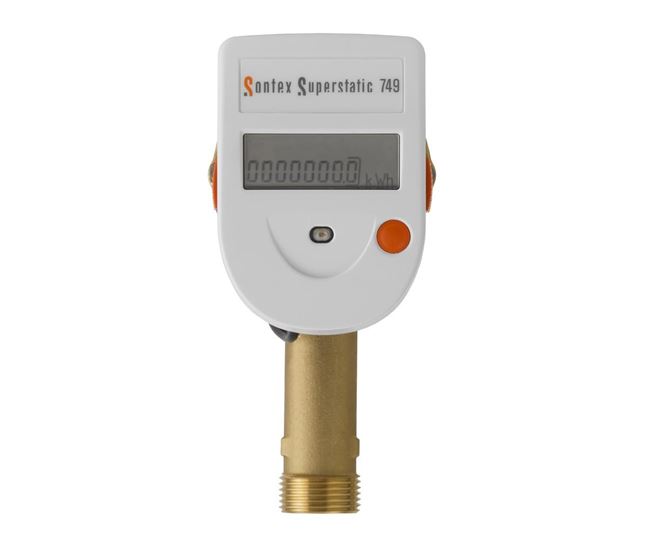

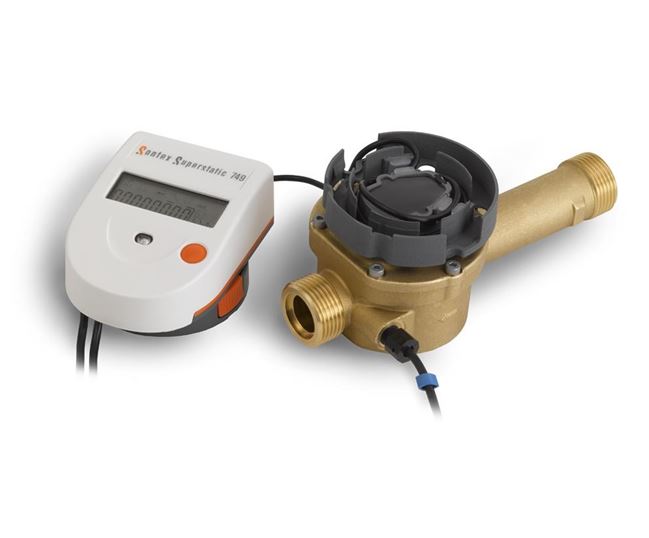

The compact design of the 749 range of Meters includes one of the temperature sensors being fitted to the meter body itself to save on space and installation requirements. Another feature of the design to save space is the display being mounted on the meter body as standard. A wall bracket is supplied should the display need to be separated from the flow part so it can be mounted to a wall nearby.


FEATURES

Compliance - MID Class 2, RHI Compliant

Connection Size - 15-20mm

Connection Type - Screwed Connection

Temperature - Cooling, Heating, Heating & Cooling

Training - DMSTeach Available

Power Supply - 12 Year Lithium Battery, 6 Year Lithium Battery

Communication Outputs - M-Bus, Pulsed, Radio, Wireless M-Bus, LoRaWAN

REVIEWS

FAQS

The Superstatic 749 meters are all Battery Powered as standard with options of 6 Year and 12 Year life spans and are fully replaceable without having to install a new meter.
The 749 meter range is available as a QP0.6 15mm, QP1.5 15mm, QP1.5 20mm and QP2.5 20mm. The QP Rating mentioned is the nominal flow rate in m3/hr that each meter size can measure up to.
