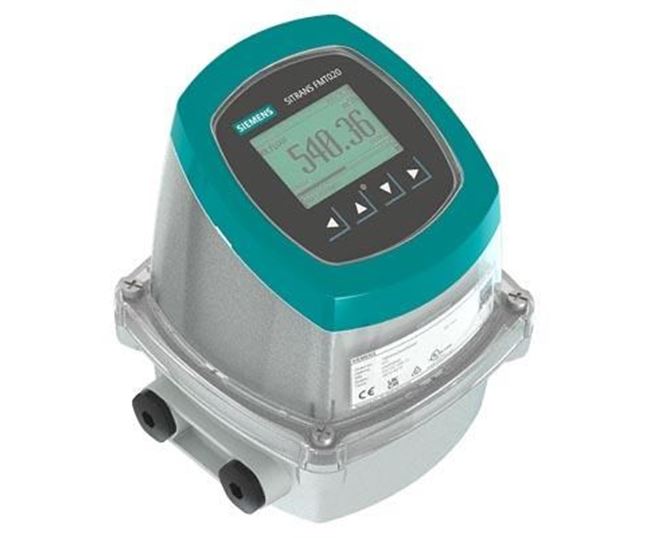

Siemens FMT020 MAG Transmitter

The new magnetic flow meter transmitter model SITRANS FMT020 is a high performance, robust and intelligent product, designed to fit perfectly for a wide area of process applications that require accurate, and reliable flow measurement of conductive fluids.

The SITRANS FMT020 is the next generation successor for the wellproven MAG 5000 and MAG 6000 transmitter series. The FMT020 retains all the unique features of this transmitter series such as the flexible installation concept with common housing for compact and remote mounting. It also maintains the modular design supporting easy exchangeability of the transmitter as well as the add-on communication modules, or the Sensorprom memory unit for fast commissioning, instant measurement, and data storage.

In addition, the FMT020 features the ability to simultaneously measure volumetric flow, flow velocity and electrical conductivity. It also offers enhanced diagnostics like empty pipe monitoring and device self-check, and comes with multi-functional input/output channels for process control, a unified operating concept and much more:

• High accuracy up to 0.2% of rate

• 3 totalizers for forward, reverse, and net flow

• Multi language, menu-guided operation

• Field bus: HART, PROFINET, EtherNet/IP, MODBUS RTU

• Integrated self-verification via SIMATIC PDM and Webserver

The transmitter can be configured locally via display and remotely over Fieldbus or Webserver. EDDs are available for SIMATIC PDM, AMS Device Manager, and AMS Trex Device Communicator, plus DTMs for FDTs (Field Device Tools).
