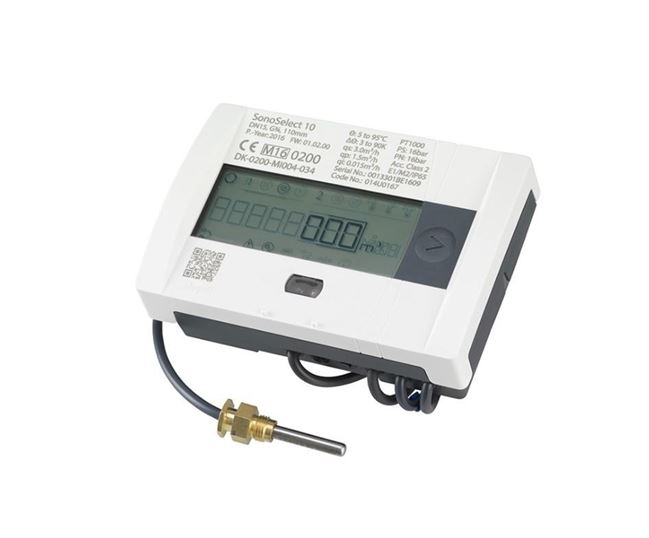

Danfoss SonoSelect 10

The Danfoss SonoSelect 10 and SonoSafe 10 are ultrasonic compact energy meters designed to measure energy consumption in heating, cooling, and combined heating and cooling systems for billing purposes. These meters are optimised for remote meter read-out (AMR). Each energy meter includes an ultrasonic flow sensor, a set of Pt1000 temperature sensors, and a calculator with integrated circuits for temperature measurement, flow calculation, and energy computation.

Key Features:

- Sizes: 15-32mm

- Reliable ultrasonic measurement technology engineered for long-lasting performance

- No need for calming sections or inlet/outlet restrictions

- Minimal pressure drop, as low as 0.03 bar at qp

- Large 85 x 35 mm LCD display with 8 digits (11.5 mm high), featuring a user-friendly menu and info panel

- Compact design for easy installation

- Detailed change and error log

- Memory capacity for storing 4 years of data, including yearly and monthly values (with pulse input)

- Upgradeable with communication modules (dual M-Bus, water meter connection)

- Power options: replaceable 3.6V battery or 230V mains power

- Communication baud rates of 300, 2400, 4800, and 9600 bps

- Compatible with SonoApp for Android (via Bluetooth LE dongle)
