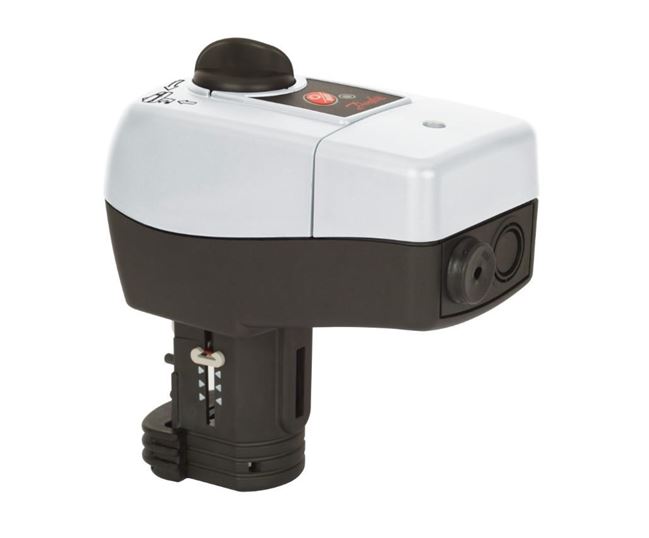

Danfoss AMV 435

The AMV 435 actuator is compatible with two-way and three-way valves, including VRB, VRG, VF, and VL types, for sizes up to DN 80. It is also suitable for AHQM valves ranging from DN 40 to DN 100, as well as pressure-independent balancing and control valves like the AB-QM, available in sizes from DN 40 to DN 100.

The advanced design of the AMV 435 actuator includes a load-related 'switch-off' feature that prevents actuators and valves from being subjected to overload. Compatibility with additional valve types is available under Accessories.

Key Specifications:

- Nominal Voltage:

  - 24 VAC/DC, 50 Hz/60 Hz

  - 230 VAC, 50 Hz/60 Hz

- Control Input Signal: 3-point

- Force: 400 N

- Stroke: 20 mm

- Speed (Selectable):

  - 7.5 s/mm

  - 15 s/mm

- Maximum Medium Temperature: 130 °C

- Additional Features:

  - LED signaling

  - End-position signals

  - Manual operation
