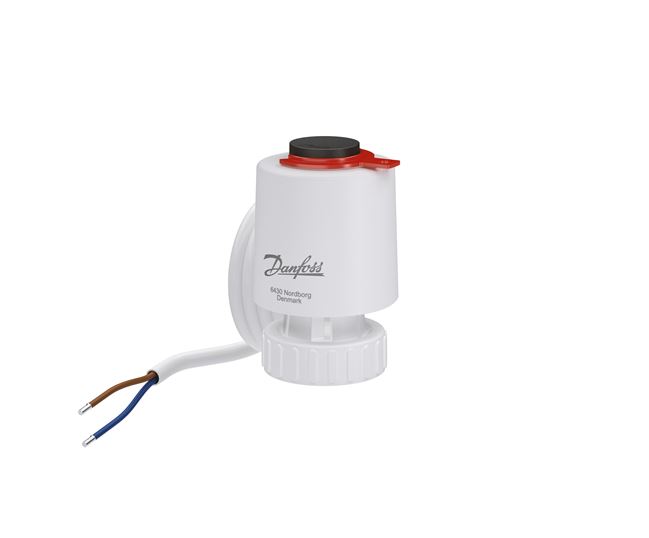

Danfoss TWA-Q

The Danfoss TWA-Q thermal actuator is designed for use with Danfoss AB-QM Pressure Independent Control Valves (PICVs), specifically for DN10-32 sizes. It is compatible with on/off controllers, pulse width modulation (PWM), or switch-based control systems. This actuator offers an economical solution for regulating hot and/or chilled water in fan coil units, as well as in small reheaters and recoolers within temperature control systems.

Key features include:

- Available in 24 V AC/DC or 230 V AC versions

- Equipped with a position indicator

- Options for Normally Closed (NC) or Normally Opened (NO) configurations

- Maximum medium temperature of 95°C

- Includes cable, with a halogen-free option available
