PadPuls Pulse Adaptors

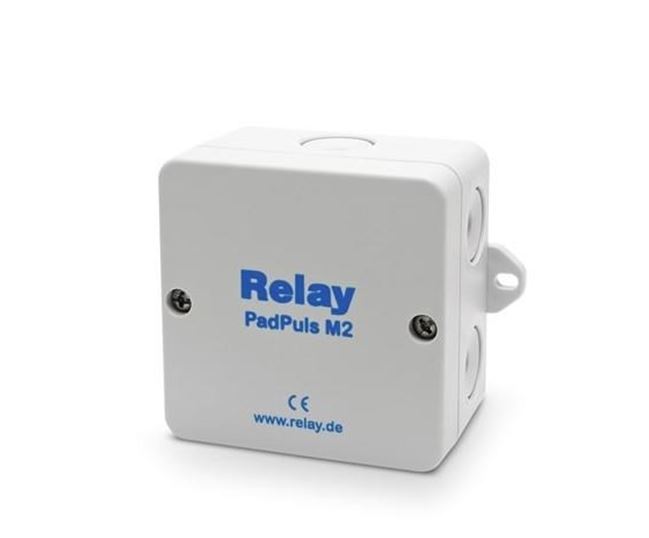

The PadPuls M2 is a dual-channel pulse adapter designed to integrate up to two meters with pulse output into the M-Bus system as slave devices.

 Standard Features:

-Two Separate Pulse Inputs:

 - Safely detects up to 15 pulses per second per input with pulse debouncing.

- Adjustable Pulse Value:

  - Customizable to fit specific requirements.

- Plug-in Terminals:

  - Simplifies installation wiring.

- Unit Selection:

  - Options include Wh, kWh, MWh, kJ, m³, l, and more.

- Counter Length:

  - Supports up to 8 decimal digits.

- Due-Date Function:

  - Integrated real-time clock for precise timing.

- Optional Data Storage:

  - Stores one yearly value and 15 monthly values.

- M-Bus Protocol Compliance:

  - Meets EN13757-2 and EN13757-3 standards.

- Fully Parameterizable:

  - Configurable via M-Bus with overwrite protection.

- Transmission Rates:

  - Supports 300 and 2400 baud with automatic baud rate detection.

- Battery Operation:

  - Functions with an integrated battery in case of M-Bus failure.

- Wall-Mountable Case:

  - Dimensions: 80 x 80 x 52 mm.

- Battery Options:

  - Two types available.

- Protection Rating:

  - Standard IP54 protection, with an option for IP65.
