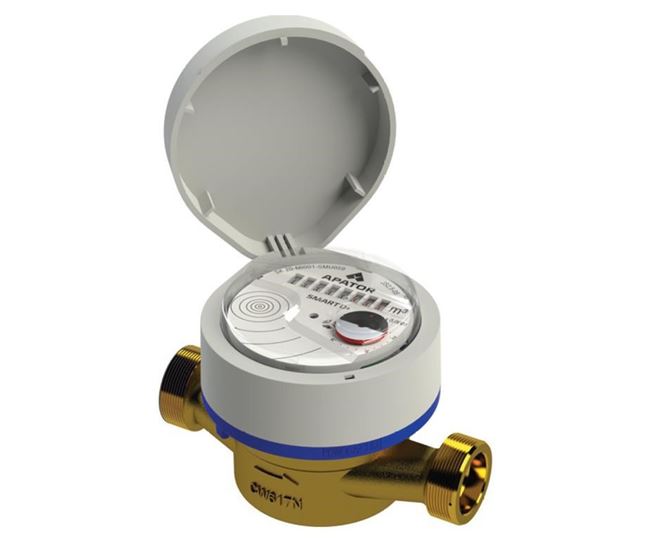

JS Smart D+ Water Meter

Smart D + is the next generation of the "Smart" series of single-jet dry water meters from Apator PoWogaz, featuring excepti... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

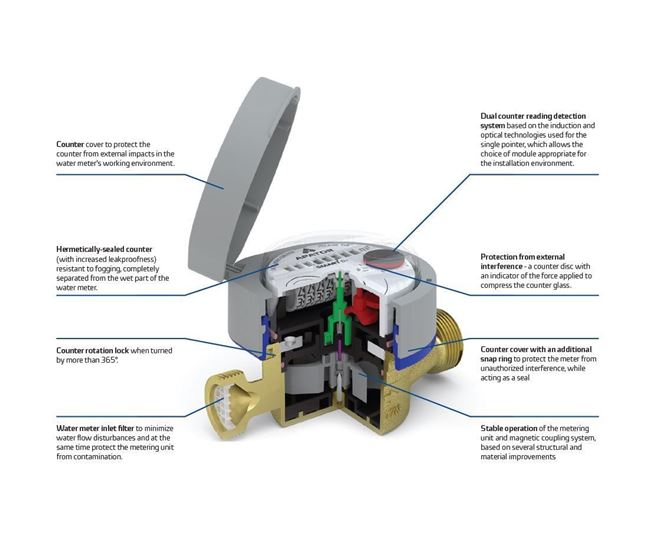

Smart D + is the next generation of the "Smart" series of single-jet dry water meters from Apator PoWogaz, featuring exceptional measurement accuracy, low water consumption and modern design. These new solutions have been designed to significantly increase the metrological and service life parameters. The water meter is interoperable with clip-on communication modules for automatic wired or wireless meter reading. The water meter design is MID Directive compliant and is classed as operating in the R200 measurement range.

Application

The Smart D+ water meter is suitable for cold water applications up to 50°C and can be used in single domestic settings or larger multi-occupancy housing and commercial properties.

The rotating counter facilitates water meter readings in the appropriate operating positions. Installation in horizontal pipelines with a top (H) or side (H) counter, and vertical pipelines with a side (V) counter.


Compliance

·         Directive 2014/32 / EC of the European Parliament and of the Council of Europe of 26 February 2014 on the harmonisation of the laws of Member States related to the making available on the market of measuring instruments

·         EN-ISO 4064-1÷5: 2014 (E) - Water meters for cold potable water and hot water

·         OIML R49:2013 - Water meters intended for the metering of cold potable water and hot water

·         Classification of environmental, climate and mechanical conditions: Class B (ref. EN-ISO 4064-1:2014 (E)

·         Classification of mechanical environmental conditions - class M1, as per Directive 2014/32/EC of the European Parliament and of the Council of 26 February 2014

·         Classification of electromagnetic environmental conditions - class E1, E2, as per EN-ISO 4064: 2014 and Directive 2014/32/EC of the European Parliament and of the Council of 26 February 2014

·         PZH National Institute of Hygiene certificate (all materials used in JS water meters have Hygiene Certificates for use with potable water)


FEATURES

Compliance - MID Class D

Connection Size - 15-20mm

Communication Outputs - M-Bus, Wireless M-Bus
