Electricity

Rectric Single & Three Phase Meters

The Rectric range of Electricity Meters are all supplied to be installed with Direct Connection in the circuits that they are monitoring the energy consumption on. They are all designed to be modul... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

The Rectric range of Electricity Meters are all supplied to be installed with Direct Connection in the circuits that they are monitoring the energy consumption on. They are all designed to be modular and mounted on DIN Rails for easy installation. All of thesem odels have an LCD for the meter readout, with the RI-D35-100-MB boasting a backlit LCD.

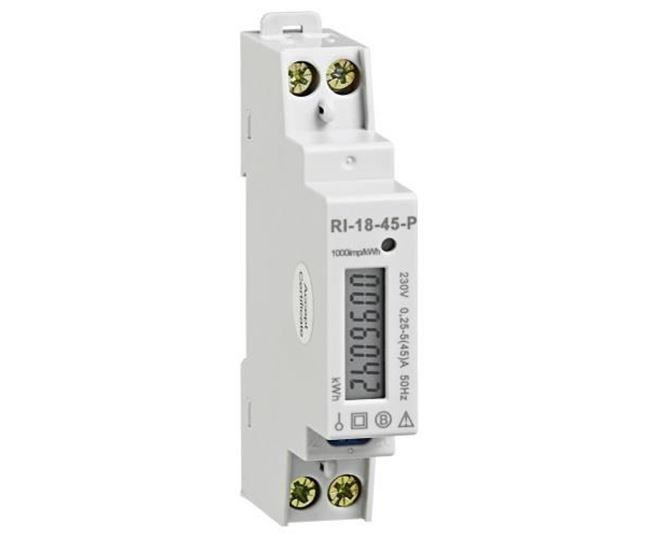

The RI-18-45-P Electric Meter is used for domestic installations on Single Phase Circuits. The Meter has a DIN Rail connection for mounting and can be situated almost anywhere since the physical size of the Meter is compact. The RI-18-45-P is MID Approved for Billing and RHI purposes, and can be used on electricity supplies up to 45A. The RI-18-45-P has a 7 Digit LCD with a measuring resolution of 0.01kWh to show the totalised energy consumption. The Meter is also equipped with a pulsed output for transmitting the data remotely. Each pulse transmitted represents 1Wh.


The RI-D35-100-MB can measure Single Phase circuits with amperage up to 100A and has a 7 Digit LCD to show the Meter readings amongst other information. This version has both pulse and M-Bus outputs, we can also offer the RI-D35-100-C which has Modbus RS485 outputs in place of the M-Bus.


Finally, the RI-70-100-P is a Three Phase Meter for 100A per Phase. This Meter has pulsed outputs for remote Meter readings.

FEATURES

Electric Phase - Single Phase, Three Phase

Display - LCD display

Compliance - MID Approved

M-Bus - M-Bus Output

Communication Outputs - Pulsed
