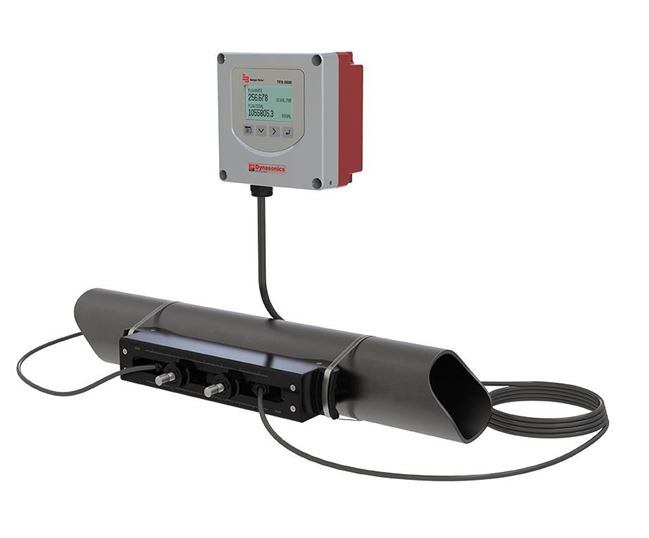

Badger TFX-5000 Clamp-on Meter

The TFX-5000 transit time ultrasonic flow meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage.

TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.

Benefits:

By clamping onto the outside of pipes, the meters have inherent advantages over other flowmeter technologies, including:

• Reduced installation time and cost

•Non-invasive, non-contact measurement

• Continued operation during installation—no need to shut down the process

• No pressure head loss • No moving parts to maintain or replace

Features:

• Large, bi-directional flow measuring range

• Datalog up to 8 records

• Modbus® RTU or BACnet® MS/TP over EIA-485; Modbus TCP/IP; BACnet/IP; AquaCUE®/BEACON® connectivity

• Configure and troubleshoot over USB with SoloCUE

• Reynolds, ultrasonic speed and temperature compensation

• Large, easy-to-read graphical display

• Rugged, aluminum enclosure for long service life in harsh environments

Applications:

The TFX-5000 meter is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements.

The TFX-5000 meter is available in two versions:

• A flow meter for water delivery, sewage, cooling water, water-glycol mixtures, alcohols and chemicals

• A heating/cooling energy flow meter used in conjunction with dual clamp-on RTDs for temperature measurement—ideal for hydronic process and HVAC applications
