Honeywell Water Meter Pulse Units

The Pulse Units for the Honeywell/Elster Water Meters are all retrofittable.

The T110 provides a reed switch pulse from the V100 Water Meters by inserting into the Meter body, next to t... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

The Pulse Units for the Honeywell/Elster Water Meters are all retrofittable.

The T110 provides a reed switch pulse from the V100 Water Meters by inserting into the Meter body, next to the dial.

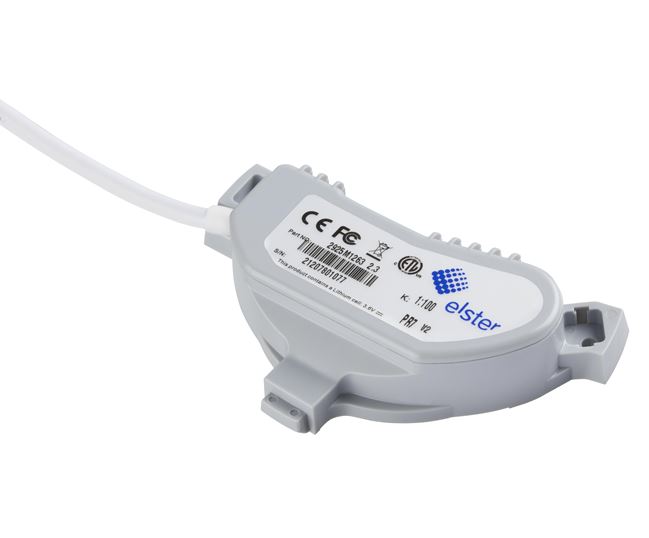

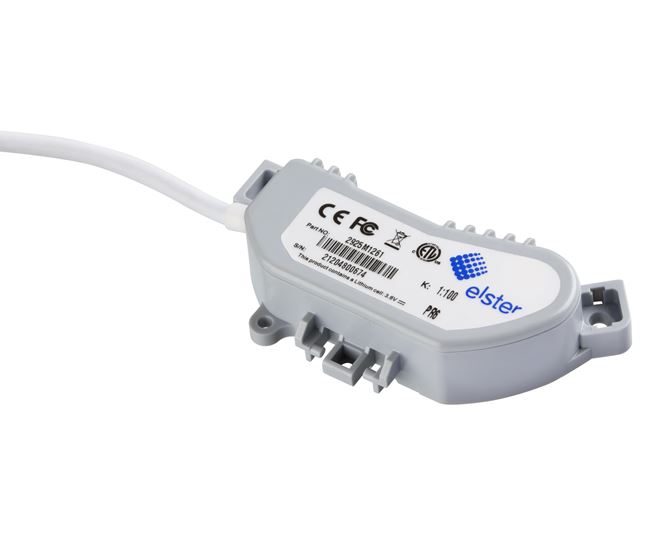

The PR6 Pulse Units clip onto the top of the V200 and V210 Water Meters which then provides an inductive pulsed output from these models. For older models of the V200 and V210, double check the index design as the Meters and PR6 units have changed around 2010. The PR7 Pulse Units suit the Helix 4000 Water Meters. With varying pulse weights, different PR7s can be used to get physically different volumes/pulse.


 The standard version is the K10:10 version which provides 2 pulsed outputs of 10L/Pulse for 40mm-125mm Meters, and 100L/Pulse for 150mm+. See the Helix 4000 Specification Sheet for more information on what each PR7 will transmit.

FEATURES

Communication Outputs - Pulsed

Temperature - Cold
