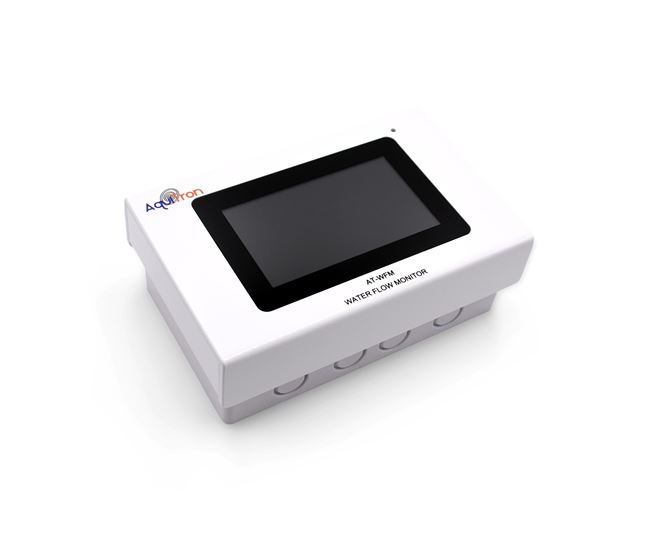

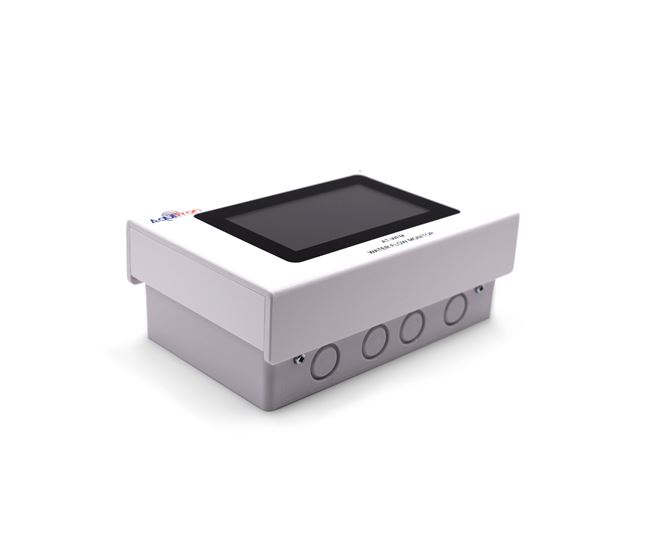

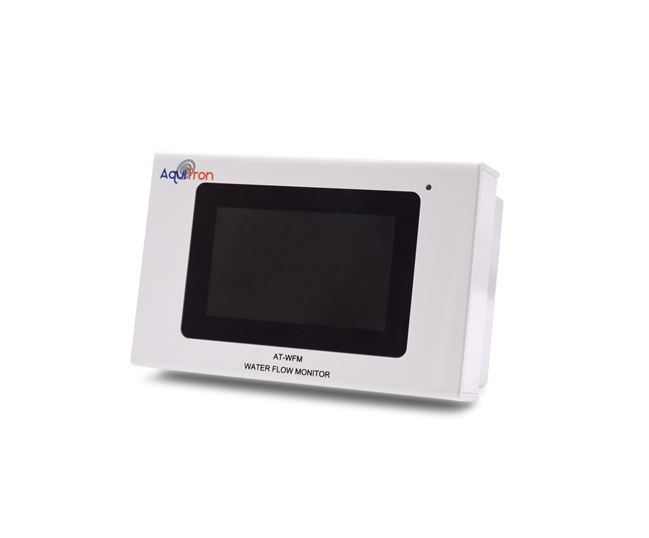

Aquilar AT-WFM Major Water Leak Detection Panel

The Aquilar AT-WFM provides reliable major water leak detection for commercial and residential applications.

The panel continuously monitors water flow and compares consumption against preconfigured limits. When abnormal or excessive flow is detected, the system can generate an immediate alarm through the building management system.

The AT-WFM communicates directly with the BMS, removing the need for additional pulse-splitting equipment in many installations.

Key Features and Benefits

• Real-time water flow monitoring

• Identifies abnormal or excessive water consumption

• Configurable flow and usage limits

• Direct integration with compatible building management systems

• Repeats meter pulse signals to the BMS

• Supports internal and boundary water meters

• Compatible with pulse-output cold water meters

• Automatic water shut-off during an alarm

• Supports 6VDC latching solenoid valves

• Suitable for commercial and residential applications

• Helps reduce the risk of water damage and excessive water loss

How the AT-WFM Works

The AT-WFM receives pulse signals from a compatible cold water meter and monitors water consumption against preset parameters.

When usage exceeds the configured limits, the panel can raise an alarm through the BMS and activate a compatible latching solenoid valve to automatically isolate the water supply.

BMS and Pulse Output Integration

The AT-WFM can relay meter pulse signals directly to the BMS, helping simplify installation by removing the need for a separate pulse splitter.

For boundary water meters, an additional pulse splitter may be required depending on the system configuration. The AT-WFM can repeat pulse signals from both internal and boundary meters, so monitoring and integration requirements should be confirmed before ordering.

Compatible Equipment

The AT-WFM is designed for use with:

• Pulse-output cold water meters

• 6VDC latching solenoid valves

• Compatible building management systems

• Internal and boundary water-metering arrangements

Water meters and solenoid valves are sold separately.

Typical Applications

• Commercial buildings

• Residential developments

• Apartment blocks

• Offices

• Schools and universities

• Hotels and leisure facilities

• Plant rooms

• Landlord and tenant water supplies

• Building management systems

DMS can provide technical guidance and help identify the correct water meter, valve and monitoring arrangement for your application.
