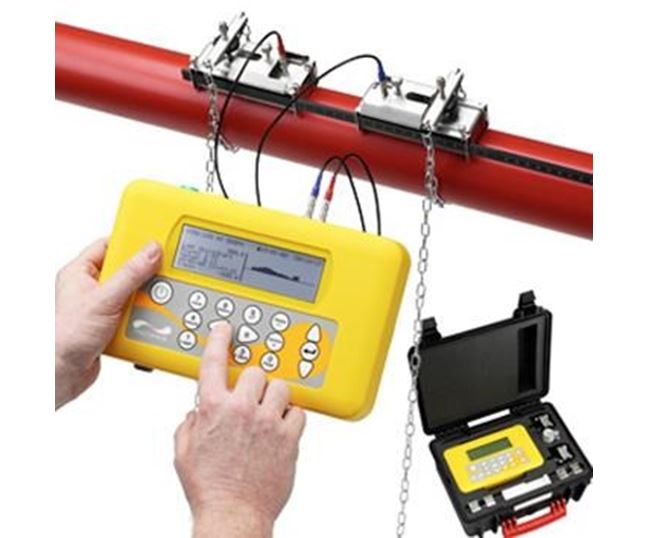

Portaflow 330 Ultrasonic Clamp-On Flow Meter

Our portable flow meter solutions are ultrasonic, clamp on and non-invasive, for closed pipe applications. This means no interruption to process and no downtime whilst the portable flow meter units... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

Our portable flow meter solutions are ultrasonic, clamp on and non-invasive, for closed pipe applications. This means no interruption to process and no downtime whilst the portable flow meter units are installed.

  •  Flow Range – 0.1m/sec to 20m/sec bi-directional

  • Display – 64 x 240 pixels graphics display

  • Programming via 16 key control panel

  • Battery or mains operation rechargeable battery

  • Battery Life – 20 hours from fully charged, depending on load

  • Power – 110 – 240VAC +/-10% supply via PSU

  • 9 user selectable languages

  • CE approved

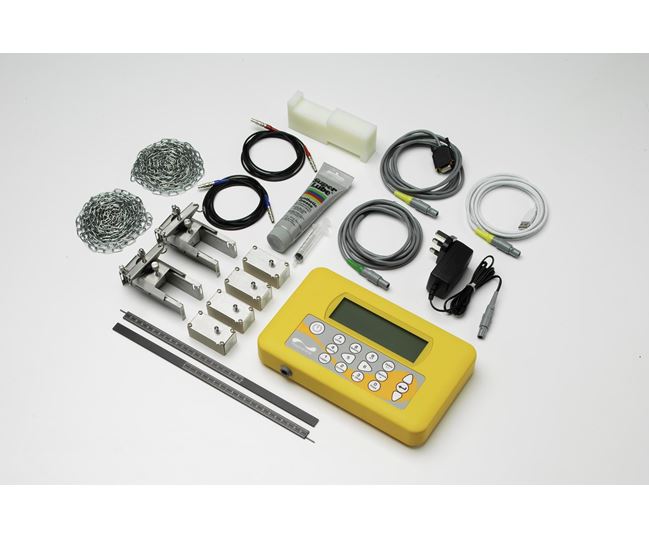

The Portaflow 330 comes with A&B transducers as standard

Transducer Operating Temp:– ‘A’&‘B’ -20°C to +135°C. ‘D’ -20°C to +80°C. ‘A’&‘B’.

‘A’ Transducers in mounting rail:– 13mm OD to 115mm OD pipes.

‘B’ Transducers in mounting rail:– 50mm OD to 2000mm OD pipes.
Optional Transducers: – ‘D’ for pipes > 1500mm up to 5000mm.
Transducer Operating Temp:– ‘A’&‘B’ -20°C to +135°C. ‘D’ -20°C to +80°C. ‘A’&‘B’.
Outputs:– Opto Isolated 0/4 –20mA; RS 232/USB; 5v pulse @ 1 pulse/sec max.
Data Logging:– 200,000 data points. Up to 20 named recording blocks. Data displayed locally in text or graph format. Real-time or stored. Can be downloaded via RS232 or USB port to Windows-based PC.

FEATURES

Power Supply - 240VAC +/-10% supply via PSU, Battery Powered

REVIEWS

FAQS

Battery Life – 20 hours from fully charged, depending on the load.
