Specialist / Process

Ultraflo U3000 - U4000

Available for sizes 13mm - 2000mm

More Info

Meter

Contractor, installer or large project?

DESCRIPTION

Available for sizes 13mm - 2000mm

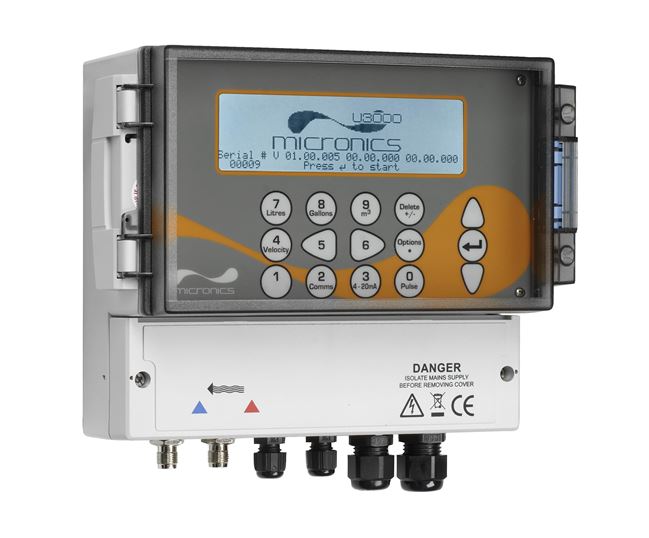

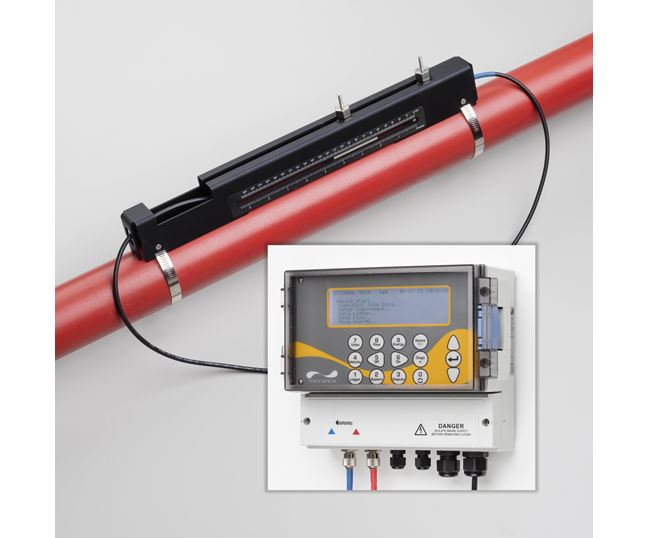

The U3000/4000 is a Fixed, clamp-on, ultrasonic flow meter, which delivers installation savings and dry servicing benefits for a wide range of pipe sizes. These can be connected to an energy display like the Supercal 531 and others……

 -       Flow Range – 0.1m/sec to 20m/sec bi-directional

-       High temperature and IP68 sensors available

-       Display – 64 x 240 pixels graphic display

-       Programming is password protected via 15 key control panel

-       Power – 86v to 264v AC. Optional 24V a.c./d.c. 1A max

-       9 user selectable languages

-       Accuracy +/- 0.5% to +/- 3% depending on pipe size for flow rate > 0.2m/s

-       CE Approved

Additional optional transducers: For pipes 1500mm up to 5000mm please contact our sales team.


FEATURES

Communication Outputs - Pulsed

Temperature - Heating & Cooling

IP Rating - IP65

REVIEWS

FAQS

Flow Range – 0.1m/sec to 20m/sec bi-directional
