Ultraflo U1000MKII-FM Non-Invasive Meter

The New U1000MKII-FM is a Fixed, clamp-on, pipe mounted, ultrasonic flow meter, which delivers significant installation savings and non-invasive, dry servicing benefits for pipe sizes ranging from&... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

The New U1000MKII-FM is a Fixed, clamp-on, pipe mounted, ultrasonic flow meter, which delivers significant installation savings and non-invasive, dry servicing benefits for pipe sizes ranging from 22mm – 180mm (6″) OD.

Key Features & Benefits:

  • New: larger pipe range 2 options, fully adjustable for 22mm – 115mm and 125mm – 180mm (6″) OD

  • New: Optional Modbus RTU slave, RS485 serial

  • New: cross correlation flow measurement system

  • New: 1Mhz transducers to get through poor/old thick wall pipes and larger pipework

  • New: Water/Glycol option

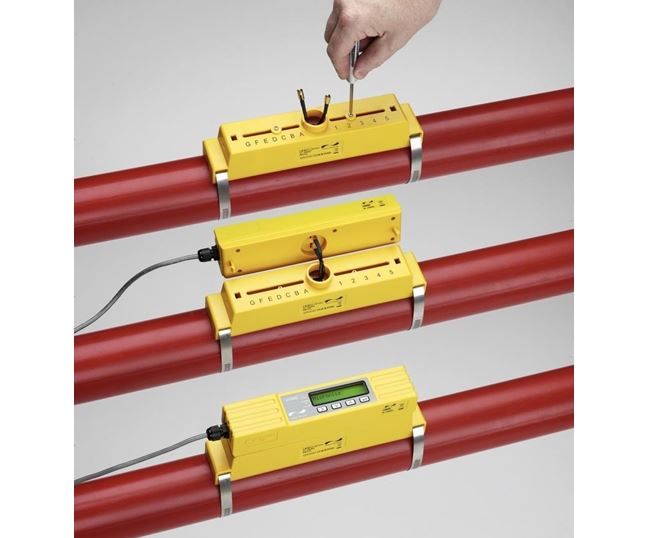

  • Simple to install: connect power and enter the pipe inside diameter, adjust the sensors and clamp-on the pipe, no specialist skills or tools required

  • A clamp-on non-invasive alternative to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability.

  • LCD with backlight – install & service information.

  • Integrated pulse and optional 4-20mA output – aM&T & BEM’s compatible with Modbus.


Accuracy: +/-1% – 3% of flow reading for >0.3m/s (1ft/s).
Flow Velocity Range: 0.1 to 10m/s (0.3ft/s – 32ft/s), bidirectional.
Pipe Range: Available in 2 options, fully adjustable for 22mm – 115mm and 125mm – 180mm (6″) OD.
Pipe Material: Steel, Stainless Steel, Plastic and Copper
Water Temp Range: 0°C – 85°C (32°F – 185°F).
4-20mA Output: Optional 4-20mA flow proportional output.
Pulse Output: Pulse or Frequency. Pulse for volume flow and alarms. The frequency for flow rate. The pulse output can be configured as loss of signal or low flow alarm. Modbus Communication: Optional Modbus RTU slave, RS485 serial link hardware layer. Connection cable 1M
External Power Supply: 12V-24V +/- 10% AC/DC at 7 watts. Optional plug-in 12V power supply
Electronics Enclosure: IP54.
Input/Output Cable: 5m x 6 core for power in, 4-20mA and pulse output.


FEATURES

Connection Size - Adjustable for pipe sizes 22mm-156mm

Temperature - Heating & Cooling

Power Supply - 24Vac Mains Powered

Communication Outputs - 4-20ma Analogue Output, Pulsed

IP Rating - IP54

REVIEWS

FAQS

Optional Modbus RTU slave, RS485 serial link hardware layer. Connection cable 1M
Accuracy: +/-1% – 3% of flow reading for >0.3m/s (1ft/s).
