The V210 range of Water Meters is an adaptation of the V200 Meters with the difference in connection style. Rather than using an in-line style of fitting, the V210 Meters have a Screwed Manifold Connection. These Meters can be commonly found in use by the Utility Companies in boundary boxes all round the UK but they are used extensively in Secondary Metering markets as well.
The V210 Meters are WRAS and MID Approved allowing them to be used on most Cold Water applications with safety and accuracy covered. For remote data collection from the V210 Meters you can use either a PR6 Pulse Transmitter or a PR6M M-Bus Transmitter.

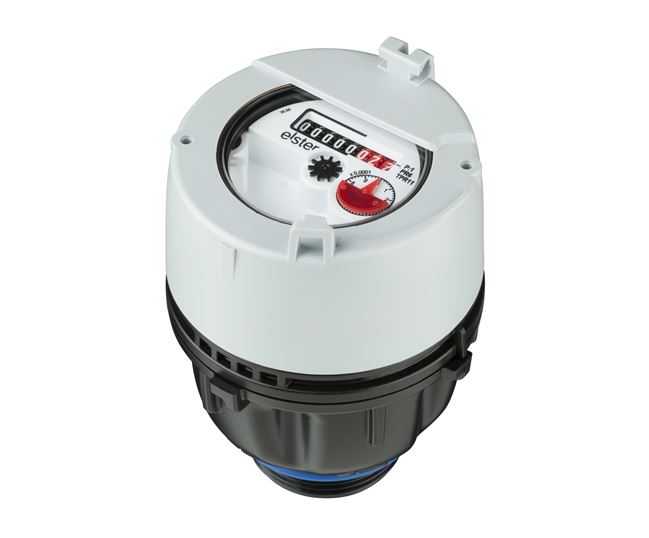

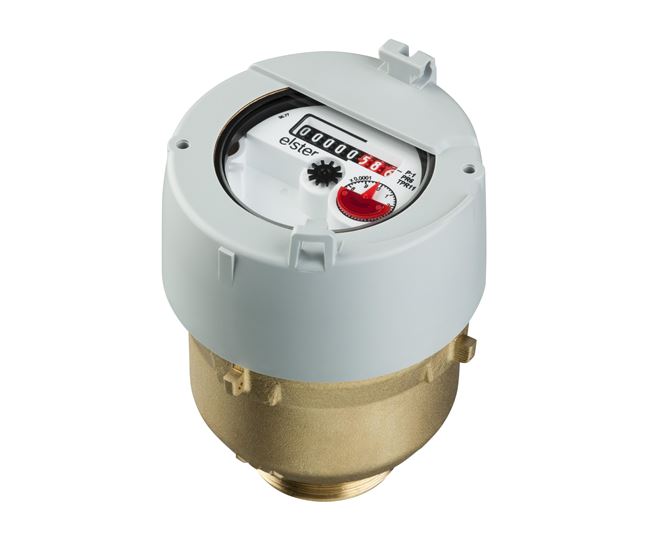

There are three models within the V210 range, the smallest flow capacity is the V210P with a polymer body and can handle flow rates up to 2.5m3/hr with a 1.5" connection. The next two models have brass bodies and can handle up to 4m3/hr (1.5" Connection) and 6.3m3/hr (2" Connection) respectively.
Compliance - MID Approved, WRAS Approved
Connection Type - Screwed Connection
Communication Outputs - M-Bus, Pulsed
Temperature - Cold
