LX Stainless Steel Turbine Flow Meter

The Lx Turbine Meters are suitable for a wide variety of specialist applications. Their stainless steel construction prevents corrosion by a range of chemical solutions... More Info

DMS RECOMMENDS

Meter

Contractor, installer or large project?

DESCRIPTION

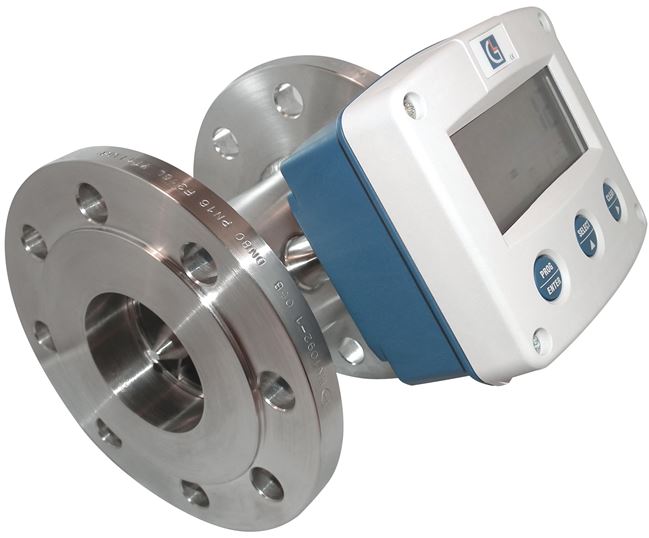

The Lx Turbine Meters are suitable for a wide variety of specialist applications. Their stainless steel construction prevents corrosion by a range of chemical solutions. The use of stainless steel in the Meter's design makes it suitable for food grade applications as well. Each Lx Meter is supplied as standard with a 101a Totaliser that displays both accumulated volume and a live flow rate on a digital read out. This display is powered by an internal battery supply but it can also be powered by a low voltage 24vdc supply. Other options of displays are available on request, please refer to the data sheet or discuss your requirements further with our sales team.

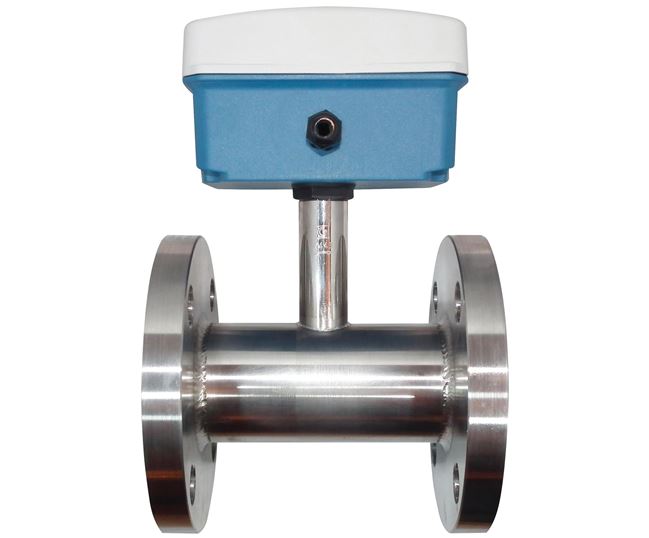

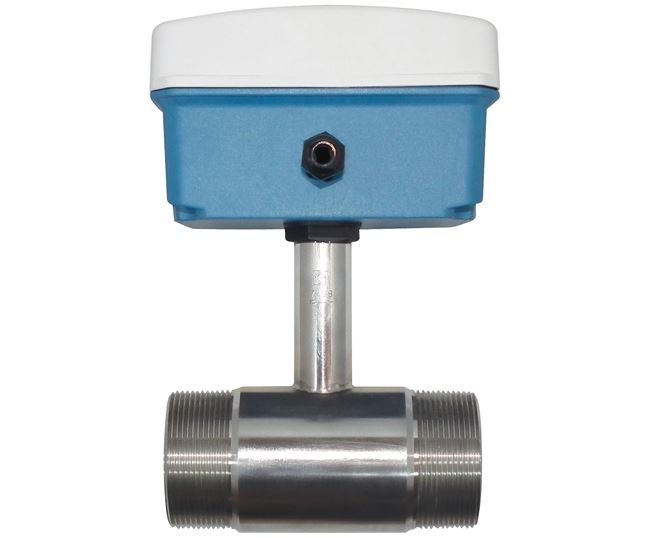

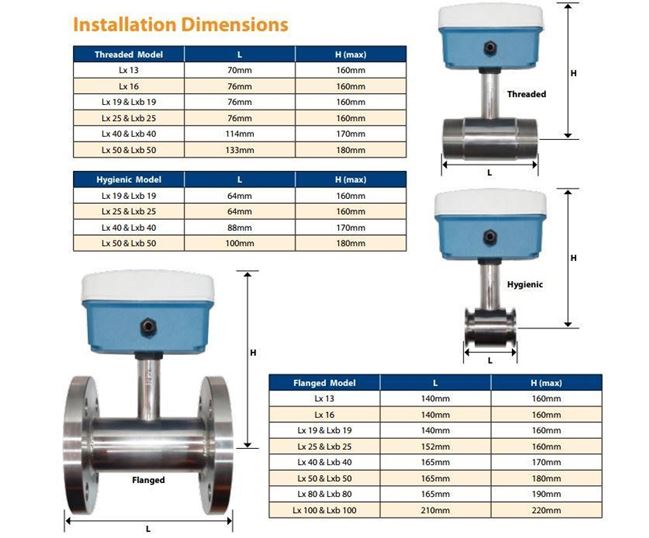

There are options of threaded or flanged connection for the Lx range of Meters. The threaded models cover connection sizes of 15-50mm with BSP male ends and the flanged range covers 20-100mm with PN16 drilling. The option of the connection style doesn't affect the flow ranges for each size of Meter which is as follows:-


Lx13 - 2-20 L/Min

Lx16 - 5-50 L/Min

Lx19 - 14-140 L/Min

Lx25 - 27-270 L/Min

Lx40 - 55-550 L/Min

Lx50 - 114-1140 L/Min

Lx80 - 227-2270 L/Min

Lx100 - 454-4540 L/Min


The Lx Meters can be used in both Horizontal and Vertical runs of pipework. For Vertical installations it is recommended for the flow direction to be travelling upwards for better accuracy.

A special version is available with Tri Clamp Connections that are sometimes required for Hygienically safe applications.


FEATURES

Communication Outputs - 4-20ma Analogue Output, Pulsed

Connection Type - Flanged Connection, Screwed Connection

Power Supply - 24Vdc Mains Powered, Battery Powered

Connection Size - 15-100mm

REVIEWS

FAQS

Each Lx Meter requires a 101a Totaliser that displays both accumulated volume and a live flow rate on a digital read out. We quote and supply a 101a every time with an Lx flow meter, and there are further options available with different outputs and options.
