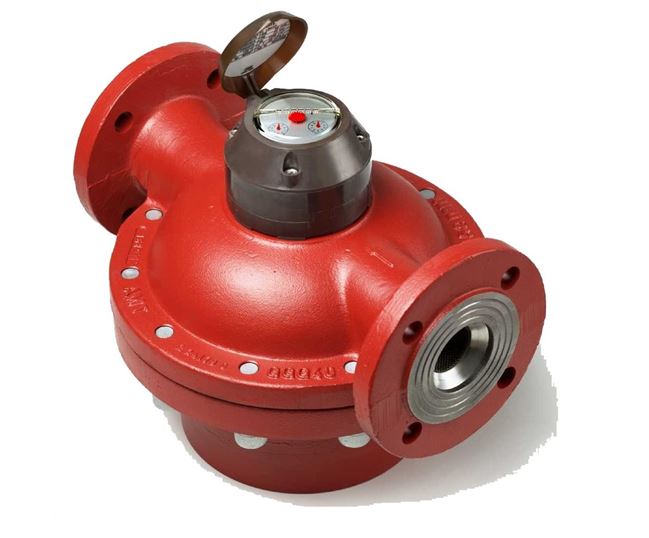

Aquametro VZO Commercial Oil Meter

For commercial installations, a larger range of in-line VZO Oil Meters are available. This range covers sizes from 15-50mm of both standard Meters with a mechanical index and also versions that include a Pulsed Output. The Meters sized 15-40mm can be supplied as either a BSP Male threaded connection or with PN25 Flanges. The PN25 Flanges are standard for the 50mm model.

All of the VZOs can be mounted in either a horizontal or vertical position when installing, without compromising the accuracy of the readings. Union connections are provided with all threaded end Meters and the RV Pulsed versions come with a 3 metre cable to connect onto.

The maximum temperature of the medium passing through the VZO Meters is 130°C and the most common applications of use include Heating and Propellant fuels. Even a boiler with turndown ratio can be monitored under the calibrated flow range of the VZO range.
