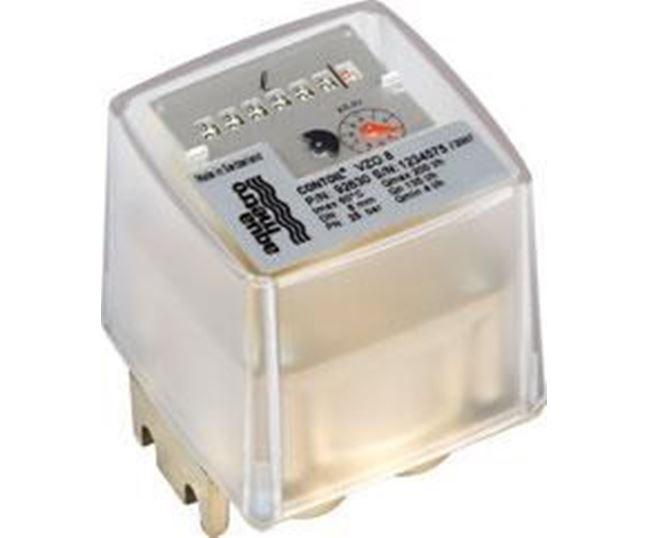

Aquametro VZO4 & VZO8 domestic Oil Meter

The VZO4 and VZO8 Oil Meters from Aquametro are the solution for monitoring the flow of Oil Supplies on smaller, domestic size installations. By working with lower flow rates compared to their more... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

The VZO4 and VZO8 Oil Meters from Aquametro are the solution for monitoring the flow of Oil Supplies on smaller, domestic size installations. By working with lower flow rates compared to their more commercial counterparts, they offer high accuracy even on the smallest of supplies. The VZO4 can be supplied with either an 8mm or 10mm mounting kit, and the VZO8 is supplied with a 15mm mounting kit. The mounting kits allow the VZO Meters to be installed with flow travelling in almost all directions as they can be rotated to work on either a straight line connection or at less conventional angled connections. The VZO4 and VZO8 can also both work accurately in Horizontal and Vertical orientation.


Each Meter model has a mechanical roller counter index that has 7 Digits. The VZO4 displays readings as small as 0.001 Litres and the VZO8 shows 0.01 Litres as the smallest resolution. A Pulsed version of each Meter is also available. The VZO4RE0.1 pulses once every 0.1 Litres and the VZO8RE1 pulses once for every Litre that passes.


MID versions of the Meters are available should an application call for it. The accuracy of the standard models is confirmed by Aquametro to be +1%/-2% for the VZO4 and VZO8.


FEATURES

Compliance - MID Approved

Connection Type - Screwed Connection

Communication Outputs - Pulsed

REVIEWS

FAQS

MID versions of the Meters are available should an application call for it. The accuracy of the standard models is confirmed by Aquametro to be +1%/-2% for the VZO4 and VZO8.
