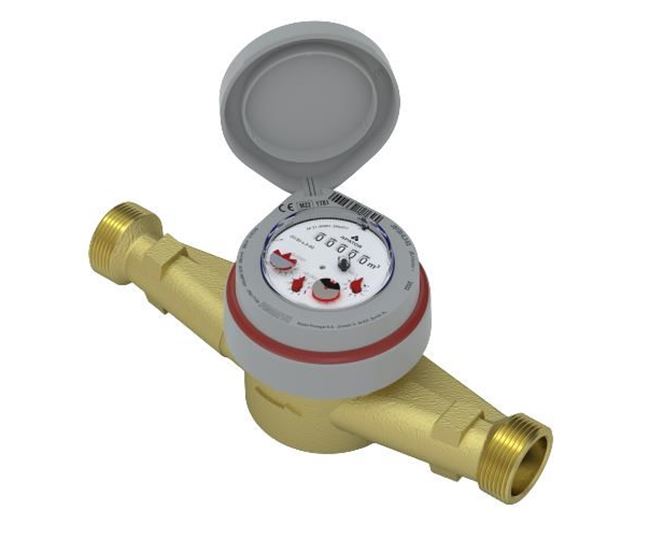

The JSC Hot Water Meters are similar to that of their Cold counterparts but are rated up to a maximum temperature of 130°C. This range uses a Single Jet measuring style which means they can be inst...
The JSC Hot Water Meters are similar to that of their Cold counterparts but are rated up to a maximum temperature of 130°C. This range uses a Single Jet measuring style which means they can be installed in either horizontal or vertical pipework.
The JSC Meters are all MID approved making them suitable for use in Billing applications. This MID approval covers their calibration range to an R80 measuring range.

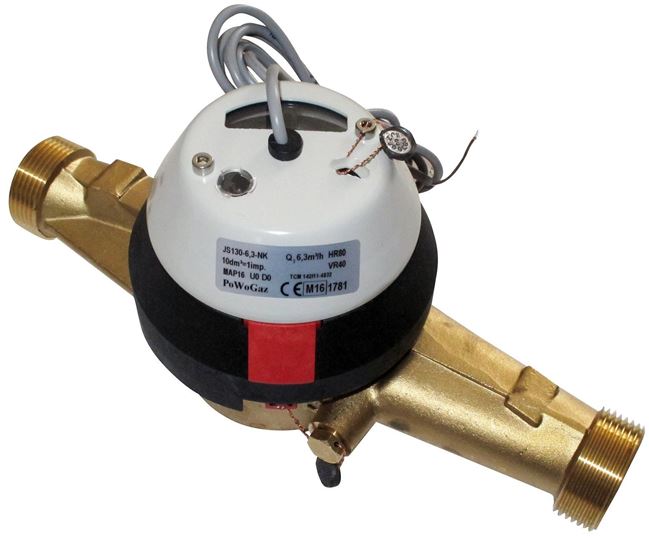

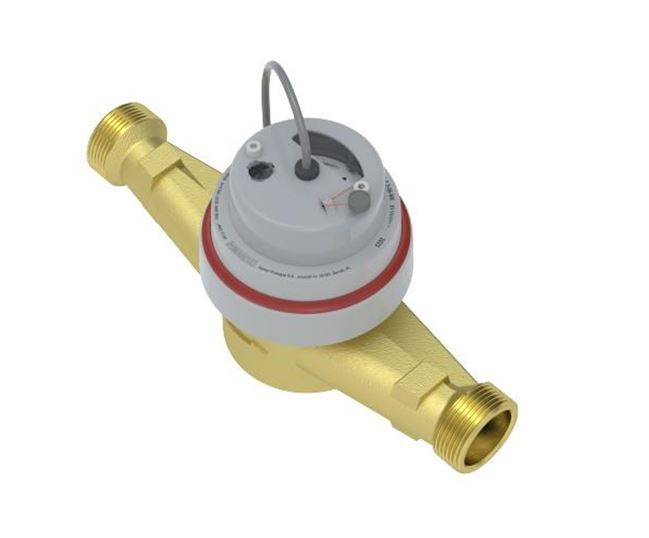

The dials of the JSC Meters can be rotated should there be the need to install them in different flow directions, which allows for an easy visual read of the meter index. Pulsed models are also available which have the NK Reed switch and cable included to provide remote data communication. The pulse ratios are 10 litres per pulse. M-Bus modules can also be fitted to the meters to provide data through a wired or wireless M-Bus network.
Union connections are provided alongside each meter to provide a BSP Male thread connection.
Compliance - MID Approved, WRAS Approved
Connection Size - 15-40mm
Connection Type - Screwed Connection
Temperature - Hot
Communication Outputs - M-Bus, Pulsed, Wireless M-Bus
