The Importance of Gas Regulators in Industrial Applications

Industries such as HVAC, combustion, propane, and manufacturing require specialised equipment to maintain safety and efficiency. Among the most critical components are gas regulators, which ensure a stable and controlled gas flow. A poorly selected or malfunctioning regulator can lead to dangerous overpressures, causing explosions, equipment failures, or inefficiencies in operations.

What is a Gas Regulator?

Originally designed in 1835, gas regulators control the pressure of natural gas, propane, or other gases using a valve system. Despite the variety of regulator types, their fundamental operation remains the same.

Gas regulators have three main components:

• Loading Mechanism: Typically a spring that determines delivery pressure.

• Sensing Element: A diaphragm that monitors pressure changes.

• Control Element: The mechanism that reduces inlet pressure to the desired outlet pressure.

The Working Principle of a Gas Regulator

Gas enters the regulator chamber and exerts pressure on the diaphragm. This movement is counterbalanced by a spring, controlling the amount of fuel allowed to flow to the equipment. Adjusting the control knob alters the gas flow:

• Turning clockwise increases pressure by compressing the spring.

• Turning counterclockwise reduces pressure by relaxing the spring.

Types of Gas Regulators

Low-Pressure Regulators

Designed for various configurations, low-pressure regulators include meter service governors and inline or coaxial types. Optional features include fire-safe construction and low-pressure cut-off capabilities.

Medium-Pressure Regulators

These regulators accommodate a wide range of pressures and include safety features such as an integrated shut-off valve, limited-capacity relief valves, and low-pressure cut-offs.

DMS Metering Solutions – Your Source for Honeywell Gas Regulators

DMS Metering Solutions stocks three primary Honeywell gas regulator models:

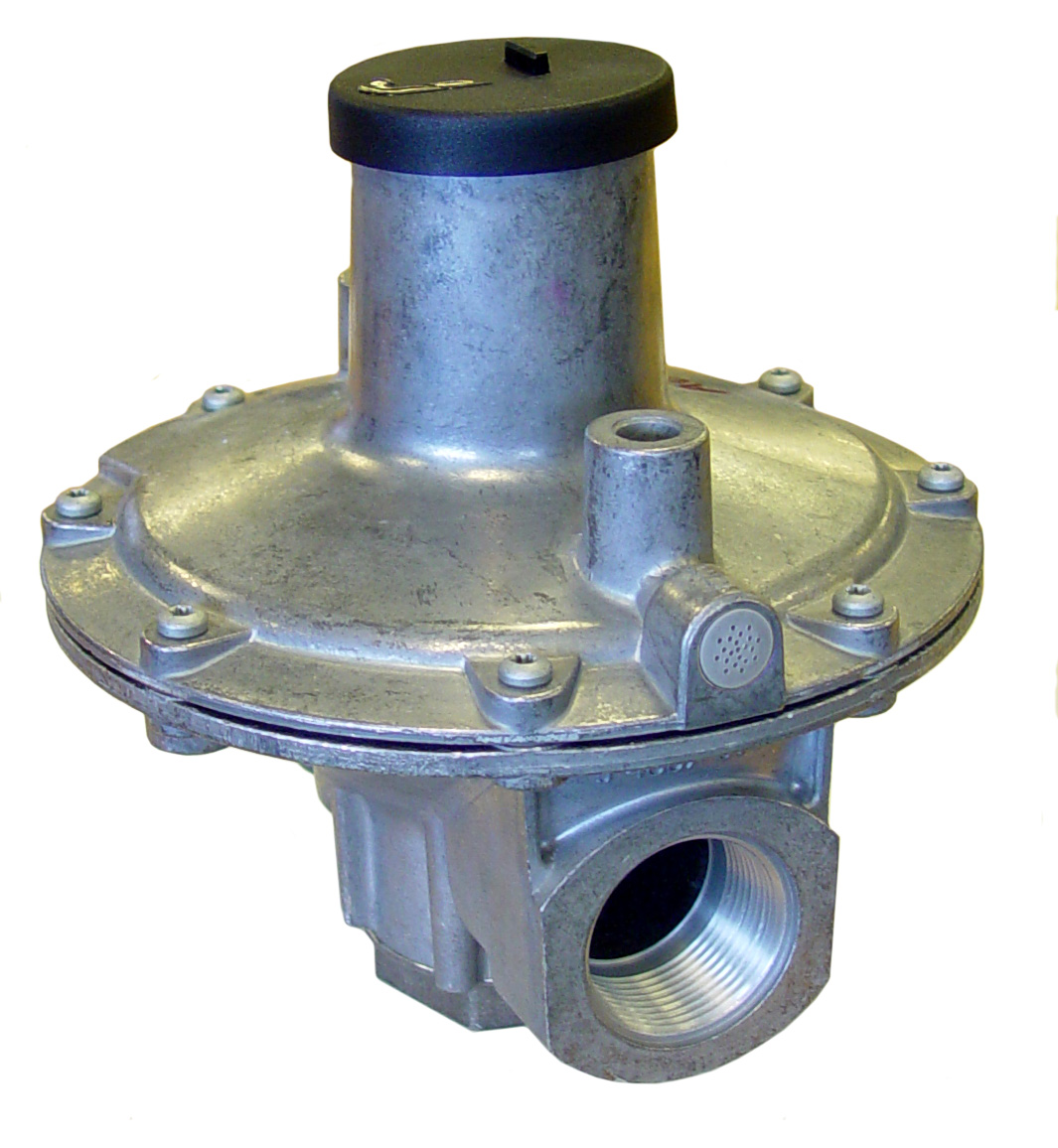

Honeywell J48 Series

Designed for industrial low-pressure applications, this range is widely used in boiler and burner systems.

-Sizes: 1", 1 1/4", 1 1/2", and 2"

-Inlet Pressure: Up to 350 mbar

-Outlet Pressure: 5 – 160 mbar

-Temperature Range: -20°C to +70°C

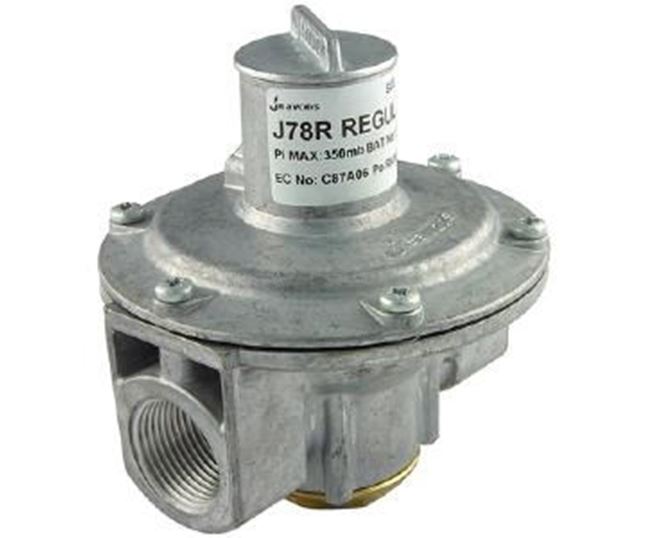

Honeywell J78 Series

A compact and economical option, ideal for commercial and industrial applications.

-Sizes: 3/4" and 1"

-Inlet Pressure: Up to 350 mbar

-Outlet Pressure: 2 – 48 mbar

-Features: Available with standard and compact designs

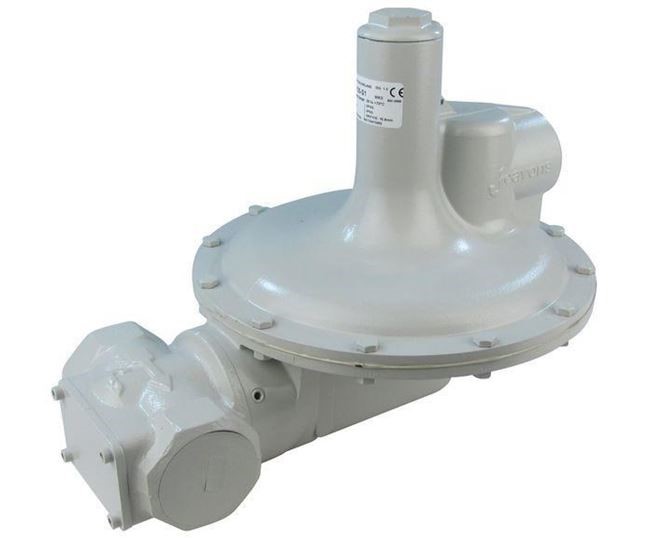

Honeywell J125 Series

Designed for precise pressure control in industrial and distribution applications.

-Sizes: 3/4", 1", 1 1/2", and 2"

-Inlet Pressure: Up to 8.6 bar

-Outlet Pressure: 5 – 350 mbar

-Features: Safety shut-off assembly for overpressure and under-pressure protection
