Hot Water Meters at DMS: Versatile Solutions for Domestic, Commercial, and Industrial Applications

At DMS, our Hot Water Meters can be used for a range of domestic to commercial and industrial projects. If you would like to know what Hot Water Meter is best suited for your application, here are some of the features and benefits of our favourites:

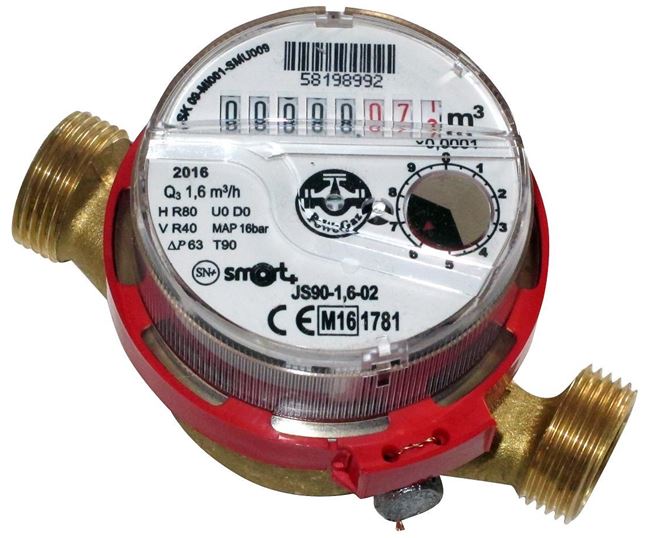

JS 15-20 mm Hot Water Meter

·         Suitable for domestic installations.

·         Can be used for small sized feeds of hot water up to 90°C.

·         Connection sizes- 15-20mm.

·         Screwed connection.

·         MID Approved, WRAS Approved.

·         Uses a dry dial design so there’s no deterioration through contact with water

·         The dial can be rotated to make reading the meters easier.

·         Using a pulse output, the meters can be linked to a remote data collection network.

·         M-bus version is available, offering the use of a wired or wireless M-Bus network.

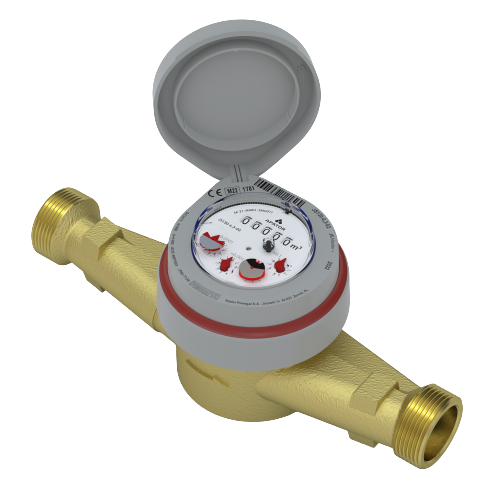

JSC 25-40mm Hot Water Meter

·         Rated up to a maximum temperature of 130°C

·         Connection sizes- 15-40mm

·         Single jet measuring style so can be installed horizontal or vertical

·         MID Approved, WRAS Approved.

·         Dial can be rotated, should they need to install them in different flow directions- allows for easier visual read.

·         Pulsed models available, which helps to provide remote data communication.

·         M-Bus can be fitted to provide data through wired or wireless M-Bus network.

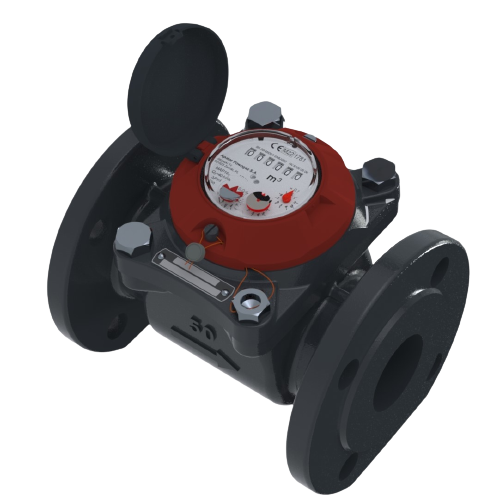

MWN Hot Water Meter

·         Used for commercial and larger demands of flow.

·         Connection sizes- 40mm up to 300mm with a PN16 Flanged Connection

·         Used for flow rates with maximum operating temperature of 130°C.

·         Uses an impeller style measuring system which can work horizontal and vertical positions.

·         MID Approved

·         Output ratio varies between 10 litres per pule and 100 litres per pulse.

·         M-Bus output is available for the suitability with either a wired or wireless M-Bus network.
