The Heat Collection from DMS Metering
The experts of heating and cooling
DMS have been specialising in metering for heating and cooling for over 20 years. We supply a comprehensive range of products which can be used for an array of installations including domestic, industrial, and commercial.
Energy meters - We supply and support meters for all applications, we have selected a handful to highlight to cover all applications.

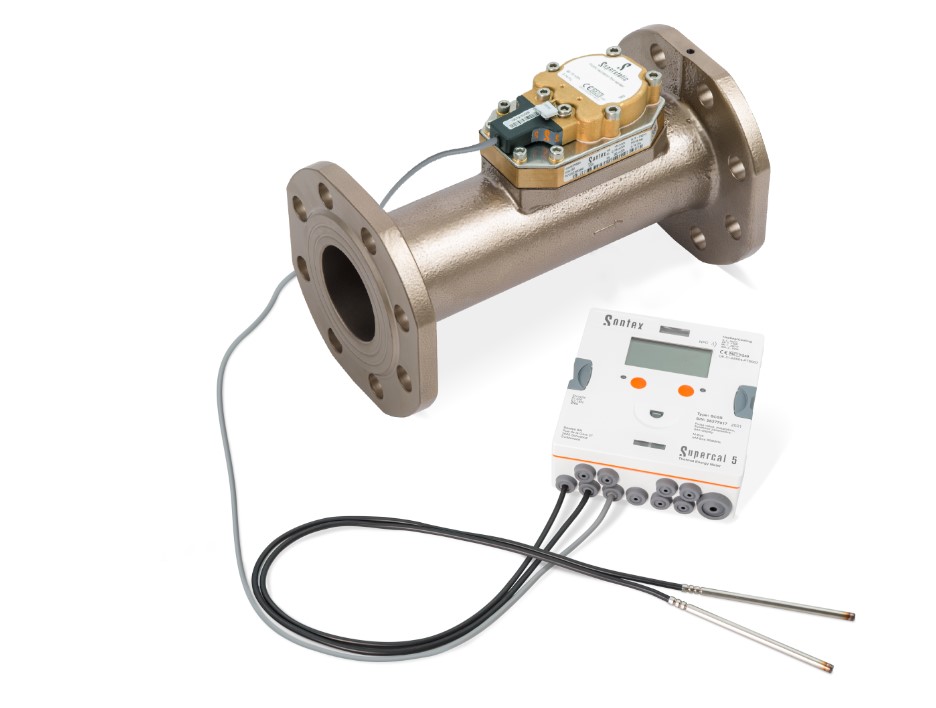

Title – Sontex Supercal 5s
Sizes - DN15 – DN500
USP’s – One unit for both heating and cooling, LoRaWAN, NFC, Glycol tolerant.
Title – Sontex Supercal 739
Sizes – DN15 – DN20
USP’s – 6 or 12-year battery options, screwed connection, compact.
Title – Sontex Supercal 749
Sizes – DN15 – DN20
USP’s – MID Class 2 approved, display mounted on the body to save space, 6 or 12-year battery options, Glycol tolerant.
Title – Sontex Supercal 789
Sizes – DN15 – DN20
USP’s – Lighter composite body, MID Class 2 approved, cost effective alternative to Brass bodied meter, Glycol tolerant, simple installation.
Title – Micronics U1000HM
Sizes – DN22 – DN180
USP’s – Non-invasive, quick and easy installation, turn-down ration: 200:01
Accessories
ABQM
Flow limiting valves from Danfoss.
Sizes – DN10 – DN250
USP’s – option to upgrade to PICV by adding an actuator, by adding the actuator the AB-QM becomes a full authority valve that can be used to control heating and cooling circuits for Air Handling and Fan Coil Units.
Temperature sensors and pockets
Sizes: Probe length: 34mm, 84mm, 134mm and 174mm. Cable length: 2m – 10m
USP’s – All pockets provide a 1/2" BSP Male Thread connection, suitable for the entire Sontex heat meter collection. T-pieces can be supplied separately (DN15 to DN25 only), which can be fitted into the pipe to allow for an easy install of the sensors.

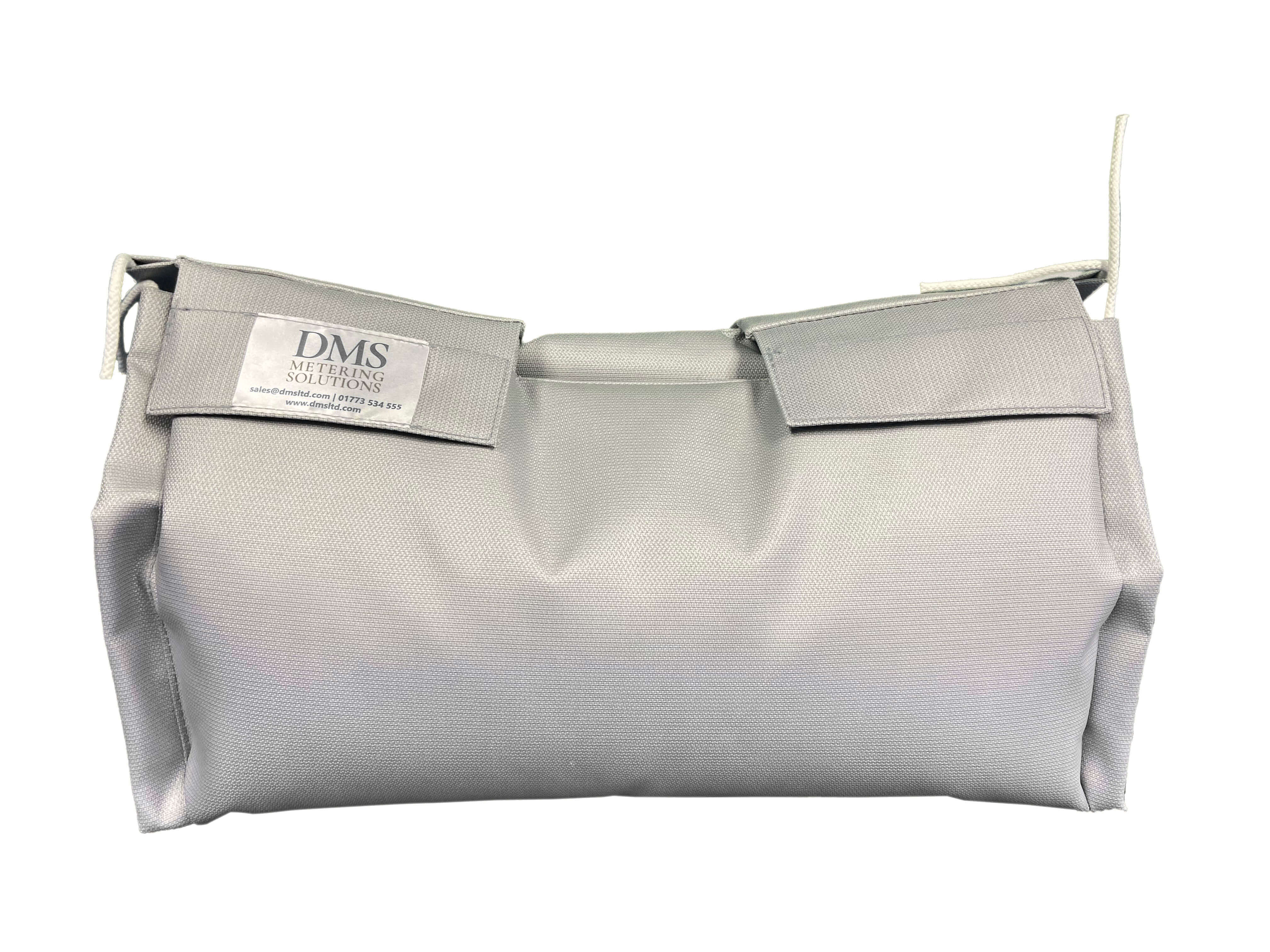

Insulation jackets
Sizes – DN15 – DN500
USP’s - pull cord or velcro fixing method, significant reduction in energy losses from boilers (95%), valves and other equipment, 3 times more efficient than other conventional insulation materials.
HCA – Heat Cost Allocators
Heat Cost Allocators manufactured by Sontex SA are simple to install can be used with a variety of radiators with the use of a mounting bracket. There are several options of HCA to choose from, LoRa, WM-Bus and manual read out. The devices store up to 144 monthly and 18 semi-monthly values.
Data collection
DMS supply the CME range by Elvaco. These metering gateways are compatible with an extensive collection of meters, depending on your requirements they can read up to 256 M-Bus meters. the CMe range can be used with any meter that has M-Bus capability.
MCU – Meter Compliance Unit
Sontex MID Class 2 Heat Meter available with M-Bus, Wireless M-Bus or LoRaWAN. 3 Port Valve for flushing, Y-Strainer with Stainless Steel Basket. Isolation Ball Valves including one specifically designed for the installation of the Flow Sensor. Dimension for Installation 400mm x 200mm (Without Enclosure)
RHI Recalibrate or replace.
DMS lead the way with the RHI back in 2011, and continued to be at the forefront of energy metering sales and support. Although the RHI is no longer an active Government scheme we are providing support and advice for those applicants who have reached the 10-year recalibration period.
Legislation states that energy meters must be replaced or recalibrated at the 10 year mark of install. We offer free impartial advice on the most cost effective method for you.
DMS offer full support on all products supplied, as well as technical back-up we can also provide training on our products. Speak to our team about Lunch ‘n’ Learn or our CIBSE approved CPD sessions. If you would like to speak with us about your heating or cooling requirements, feel free to give us a call, or drop us an email.
01773 534555 / meters@dmsltd.com
