Meter Carriers for Concentric Water Meters – the quick and easy method for busy installers.
A new product has joined our elaborate range – The DMS Meter Carrier.
Before we delve into this product, let’s learn more about why the Carrier can be helpful for busy installers!
Why use a Meter Carrier?

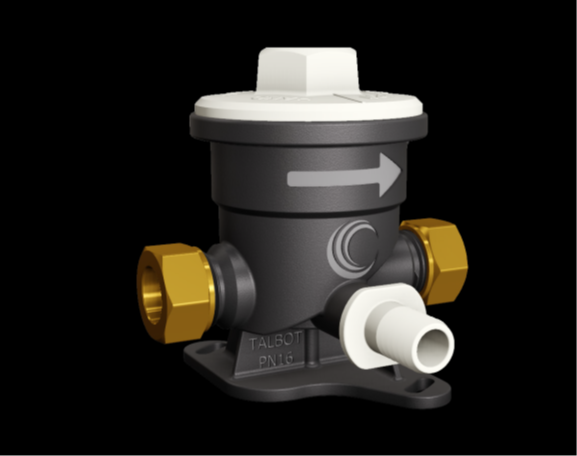

A Meter Carrier is ideal for retrofitting concentric water meters into existing internal pipework, in a kitchen or cupboard for example. The Carrier is equipped with a complete non-return valve and drain off point which allows for an uncomplicated fitting of the meter – even in a compact area.
Good to know…
- The range features different connection sizes for PE and/or copper pipe, to fit every installation variant.
- Made from WRAS Approved materials
- Outlet sizes – 15/22mm copper compression or for 20/25mm PE Push fit
- Property protection - Integrated non-return valve protects the water network from backflow contamination.
- The meter is easily connected by removing the white flow cap and screwing in the concentric meter.
Where can the Carrier be used?
The Meter Carrier can be used on new or existing pipework, it works with the concentric water meter to protect the surrounding area and simplifies the installation. Domestic properties benefit from these carriers being added due to its ability to offer ‘drain down’ meaning you can drain the water pipework within the property. The drain off is opened by rotating it anti-clockwise until the water starts to release.
The meter carrier can be fitted to 20mm or 25mm MDPE or 15mm copper or 22mm copper compression.
The complete solution.
DMS are the experts for all things meters, and for concentric meters there is no exception. We highly recommend the range of Altair V4 water meters. the Altair V4 are used extensively within both the Utility sectors and secondary markets.
The Altair V4 Meters are WRAS and MID Approved allowing them to be used on most cold-water applications with safety and accuracy covered. For remote data collection from the Altair V4 Meters you can use either a PULSAR Pulse Transmitter or a M-Bus Compact I M-Bus Transmitter.
Speak to our team, we can assist with any requirement for water, heat or gas metering and we offer a wide range of ancillary products to complement our metering range.
01773 534555 / meters@dmsltd.com
