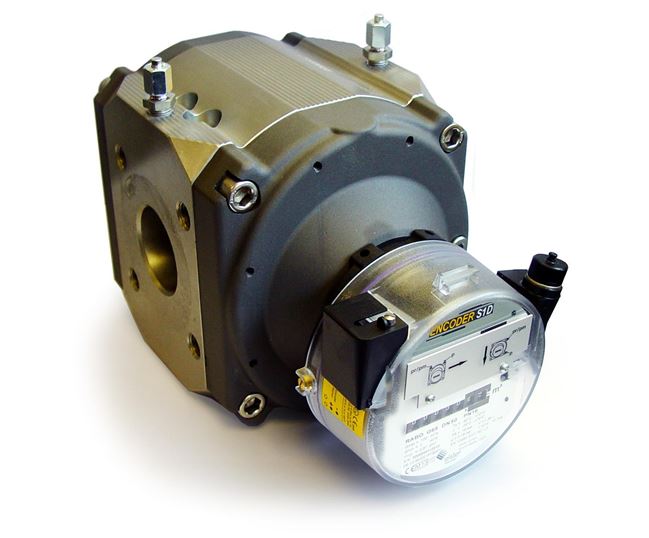

Rotary gas meters are characterized by high measuring ranges and compact dimensions. They ensure high accuracy, even if the gas flow is low or irregular. RABO combines tried-and-tested product features of previous rotary gas meters from Honeywell and is a convincing product because it offers a large range of future-oriented

features.

Applications

RABO is suitable for measuring gases of the first, second and third families pursuant to EN 437:2009 and for measuring a range of technical gases.

Brief information

Operating principle - Rotary gas meters are volume-measuring devices for gaseous media which operate according to the positive displacement principle. Due to their volumetric measuring principle, their functioning is not influenced by the installation and they are therefore ideal for compact measuring systems without an inlet section. They record the gas volume under operating conditions and are approved for custody transfer applications. Electronic volume conversion devices can be used in order to convert the volume...

 • Meter sizes G16 to G250

• Flow rates from 0.6 to – 400 m3/h

• Nominal sizes DN 32 to DN 100

• Temperature range -25 °C to +70 °C

• Measuring ranges up to 1:160
