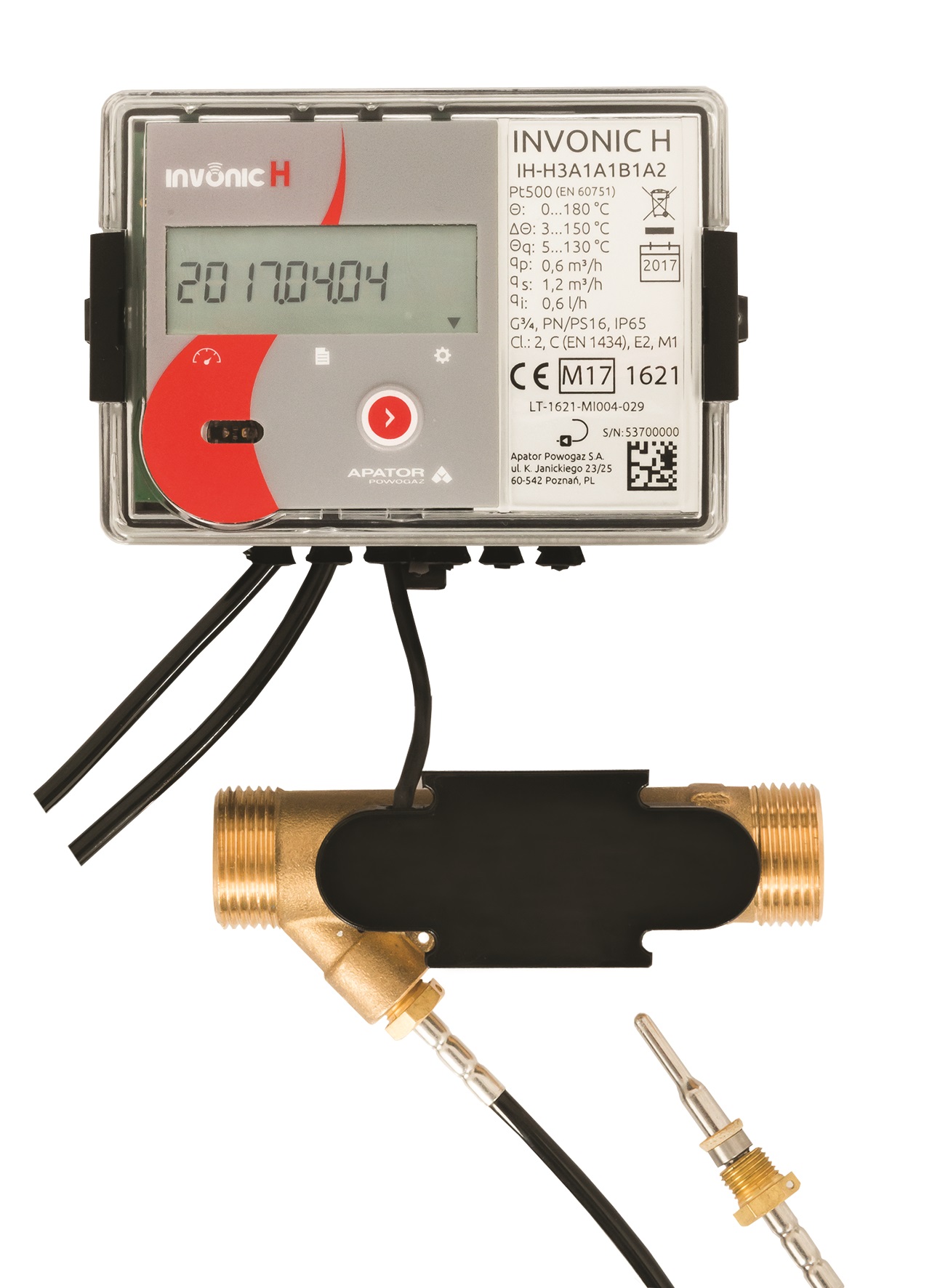

Turning up the Heat - INVONIC H Ultrasonic Heat Meter

Apator PoWogaz UNVONIC H Ultrasonic Heat Meter – How to get it right first time!

Here is a short list of the most important factors to consider when choosing

To enable us to advise you correctly on which type of Heat Meter you require, we will need to know the following;

–         What size is the pipework?

–         What is the flow rate?

–         Does it need to be flanged or screwed?

–         What power option you require?

–         What medium will be passing through the meter?

We have compiled a list of the most important things to consider when choosing the correct heat meter for your application and reasons to select the INVONIC H Ultrasonic Heat Meter

1.       No moving parts, promising a long life thanks to no moving parts

2.       Flow range of 0.6 – 1,000m3/h

3.       Horizontal or Vertical installation

4.       Wide range of communication options (Wired - M-Bus, Modbus RTU, BACnet MS/TP, pulse outputs (Wireless - M-Bus 868 MHz T1 OMS)

5.       Sizes DN20 – DN100

6.       Power supply from 230 V AC, 24 V AC/DC or battery (battery lifetime up to 11 years)

7.       Suitable for residential, commercial or  industrial applications

8.       LCD Display

9.       Maximum temperature of 180°C.

10.   Flow rate of 0:100

Approvals;

2014/32/EU Measuring Instruments Directive (MID), 2014/30/EU EMC Directive, 2014/35/EU Low Voltage Directive, 2014/53/EU Radio Equipment Directive (RED), European standard EN 1434 “Heat meters”, Parts 1+6

If you would like to know more about the Apator PoWogaz UNVONIC H Ultrasonic Heat Meter range you can request the full datasheet from our team or feel free to give us a call or email and speak with one of our experts.

Manufactured in Poland, distributed in the UK by DMS Metering Solutions
