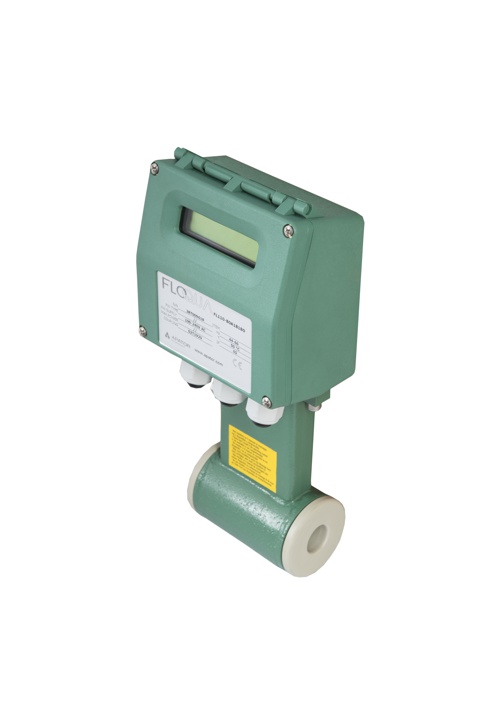

Our new Floqua MAG meters have landed!

Our new range of FLOQUA flow meters cover connection sizes from DN25 – DN2000 and can be used for water and wastewater management, heat-supply systems and in many industries such as chemical and food applications. The FLOQUA is also suitable for the measurement of pure and contaminated liquids, sludge, pulp and aggressive liquids.

Part of the FLOQUA design allows it to measure the flow of electrically conductive liquids with a conductivity amount greater than 5 μS/cm in closed pipeline installations.

The FLOQUA is made from Nylon PA6, reinforced with fiberglass. The internal lining is made of polypropylene or ebonite (depending on the size).  The display has an alphanumeric display and 3 programmable keys. The sensor protection rating on the FLOQUA Meter range is IP67 and these Meters are available in either a Cold Version with a temperature range of 0-60°C and an LTHW Version that can measure mediums with temperatures ranging between (-20)-110°C. Depending on which internal lining is used there may be an increase in the minimum and maximum temperatures. There’s even a High-Temperature version that is rated for mediums up to 180°C.*

Why should you choose FLOQUA?

Features and advantages:

·         There are no mechanical moving parts, ensuring a longer life

·         Minimal pressure losses

·         A high measurement accuracy (due to it using electromagnetic technology)

·         Density and viscosity of the liquid does not affect the measurement accuracy

·         Connection options: Flanged (DN25-DN2000) or Wafer Pattern (DN25-DN400)

·         Available with mains power supply, battery-powered and solar-powered options

·         Additional communication protocols: HART, MODBus, ProfiBus DP

For more information please contact our technical team, who will be happy to assist you

www.dmsltd.com / 01773 534555 / meters@dmsltd.com

*Dependant on range chosen – speak to our sales team for more information
