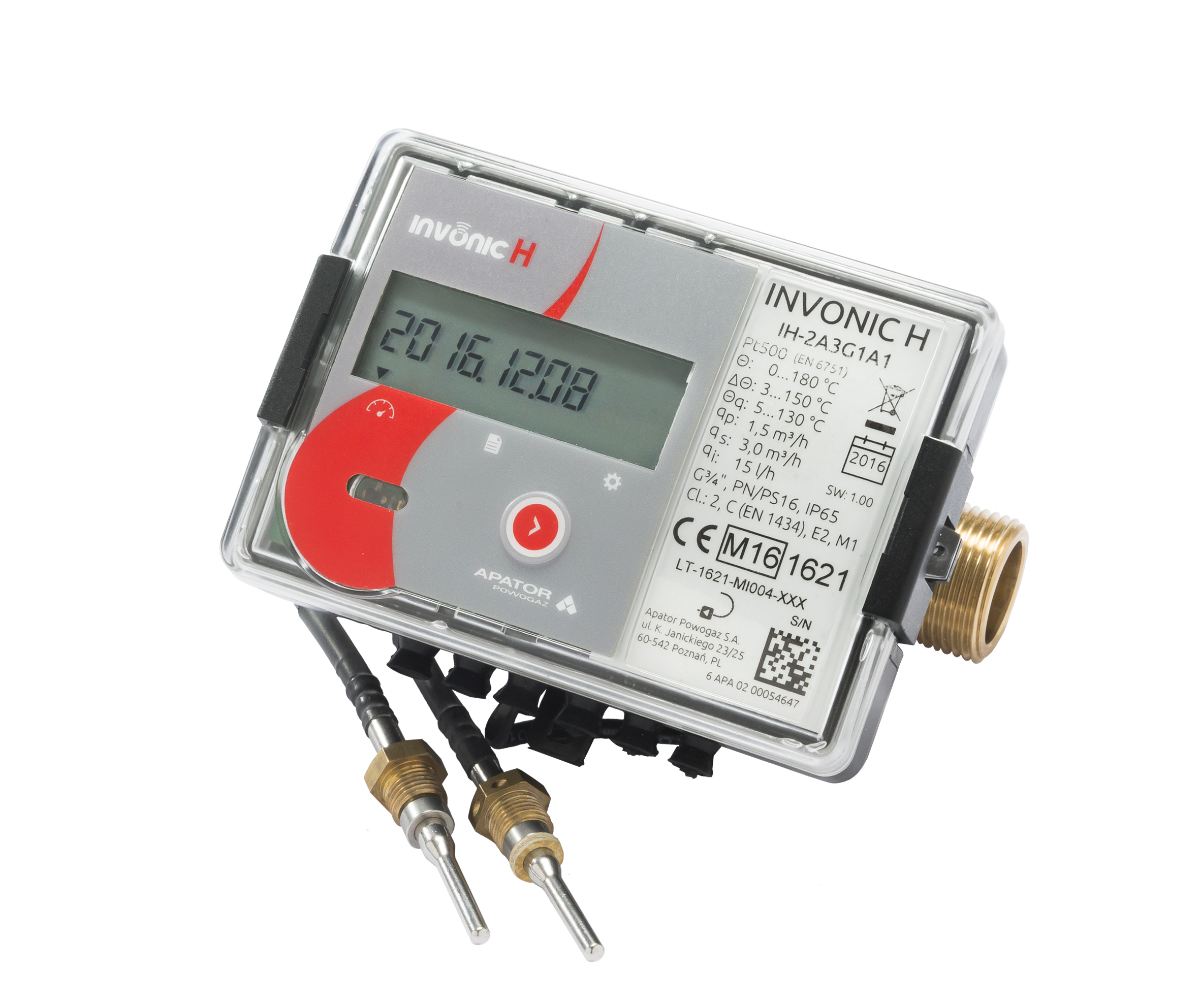

INVONIC H – Modern Ultrasonic Heat Metering from DMS

We are proud to introduce the INVONIC H Ultrasonic meter to our vast product range. The INVONIC utilises ultrasound technology to guarantee precision measurement for long term operation, regardless of its installation principle! This heating and cooling meter boasts accuracy, with an IP65/IP67 protection class rating, effectively guarding the instrument against false readings from condensation. The meter is able to process a measuring range of 1:100 and 2:250* in any orientation. The INVONIC H is also well guarded against external magnetic fields.

Installation is easy; the INVONIC H is built as a compact size with split design, 1.2 meter cable, 8 digit LCD display for clear readings and single button operation. The Heat meter can be supplied with 24/230v mains power or 11 year battery options. The INVONIC is able to process high flows without wearing down the measurement chamber

• MID CLASS 2 (EN 1434) (Measurement Instruments Directive)

• Sizes DN15  → DN50

• Temperatures from 5°C  → 130°C

• Suitable for residential, office, commercial and industrial buildings

• Remote reading – via a cable or wirelessly. This can be integrated with your BMS and can be added without affecting the approval marks
