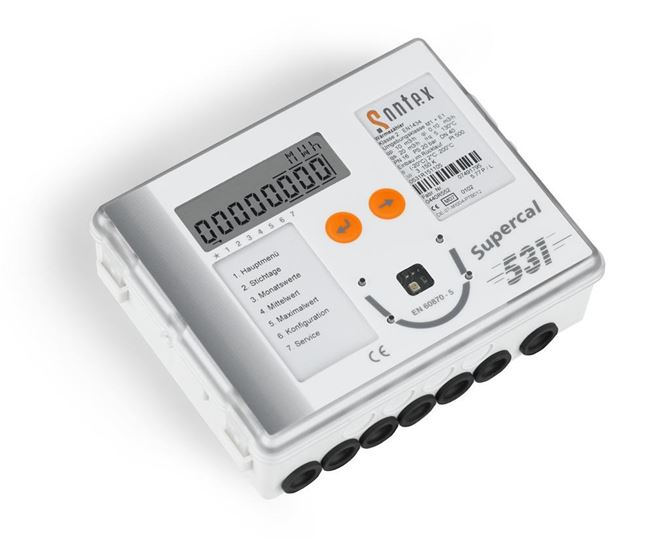

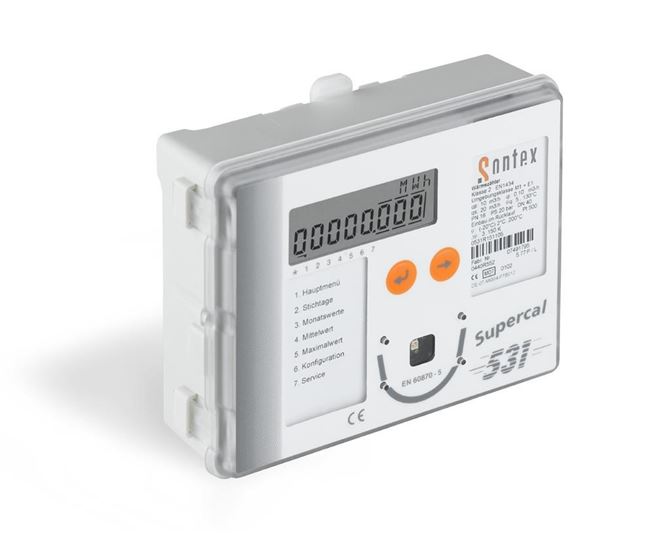

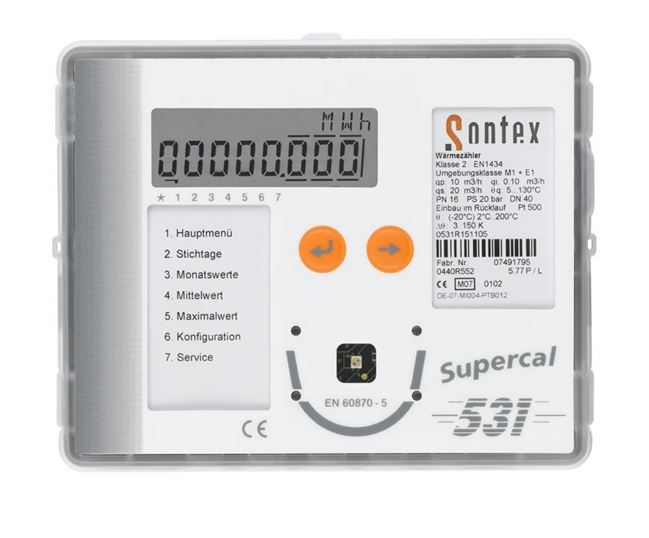

Sontex Supercal 531 Integrator

The Supercal 531 Energy Integrator from Sontex meets the needs across many installations. It's used alongside the Superstatic 440 Flow Meter as a fully MID Compliant Heating and Cooling Meter a... More Info

Meter

Contractor, installer or large project?

DESCRIPTION

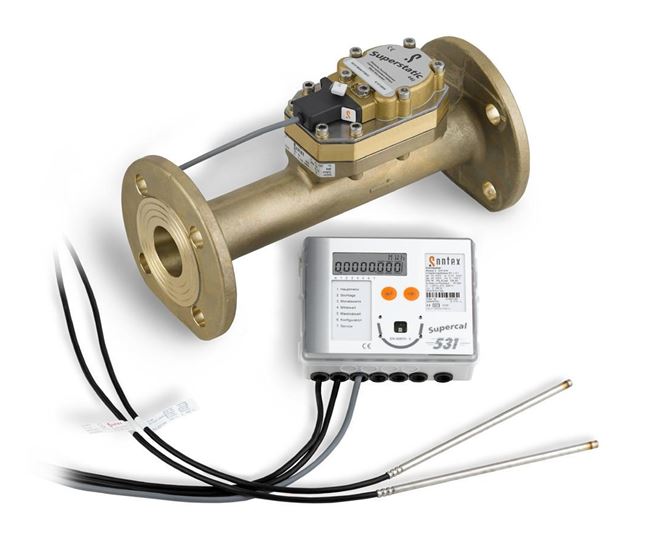

The Supercal 531 Energy Integrator from Sontex meets the needs across many installations. It's used alongside the Superstatic 440 Flow Meter as a fully MID Compliant Heating and Cooling Meter and it can also be paired with a mechanical flow meter for basic energy monitoring. This integrator comes with  a factory fit M-Bus and Pulse Output with extra module slots to suit a wide range of outputs, including LON, Modbus, RS232 and analogue just to name a few. There is also the flexibility of power supply that the Supercal 531 can be supplied withwhich can be a D-Cell Battery for remote installation or a mains 230vac, 24vac or 24vdc power module can be used for a permanent power solution. All of the wired power modules have a back up battery in case the main power supply is lost.


For installing the Supercal 531, a bracket is supplied as standard which offers a dual purpose to install the Calculator on either a DIN Rail or screwed directly onto a Wall. All cables wire into the bottom of the unit with rubber glands provided as standard. The factory fit M-Bus module can also be supplied as  a Radio or GSM version for extra communication options.


FEATURES

Compliance - MID Class 2

Temperature - Heating & Cooling

Training - DMSTeach Available

Power Supply - 230Vac Mains Powered, 24Vac Mains Powered, 24Vdc Mains Powered, Battery Powered

Communication Outputs - M-Bus, MODBus, Pulsed, Radio

REVIEWS

FAQS

There is also the flexibility of power supply that the Supercal 531 can be supplied with which can be a D-Cell Battery for remote installation or a mains 230vac, 24vac, or 24vdc power module can be used for a permanent power solution. All of the wired power modules have a backup battery in case the main power supply is lost.
